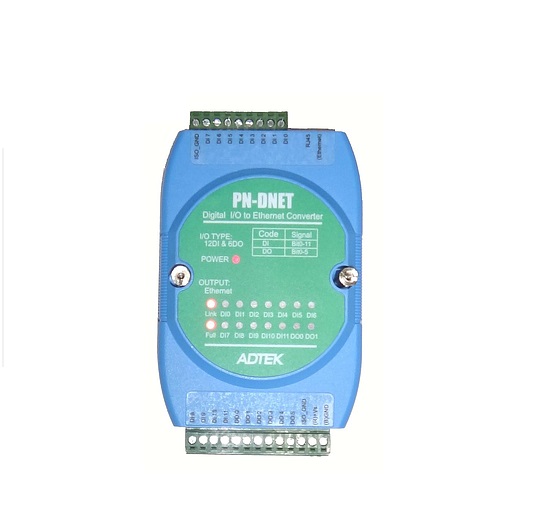

ADTEK PN-DNet DI/DO TO ETHERNET Converter (12DI/6DO)

  • Manufacturer: Adtek
    Model: PN-DNet
  • Contact
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: ADTEK - Taiwan
Model: PN-DNet
Warranty: 12 month
Made in: Taiwan

CPU: ASIX MCU
Network interface: 10M/100M BASE-T, RJ-45 connector
Protocol: TCP/ IP,UDP,DHCP Client, HTTP, Modbus/TCP
Automatic reset: Built-in Watchdog Timer automatic reset
Digital input 12-channel optically isolated input
Range:
- Logic level 0:Ground (5~30VDC)
- Logic level 1:Open (0~2VDC)
Digital output: 6-channel output
Security: Can set the system password and login password
Power Supply: DC 10~30V
Weight: 150g
APPLICATIONS
- Security devices
- Warehouse terminals
- Access control terminals
- Time recorders
- Shop floor automation terminal

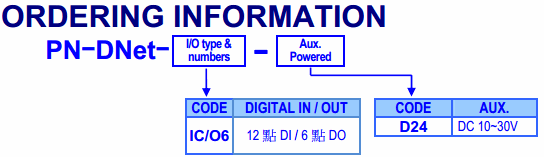

Select the bottom ordering

Datasheet

Manual
