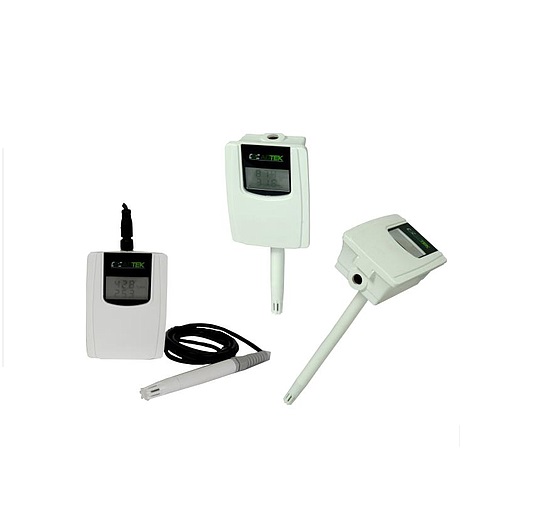

ADTEK HTP TEMPERATURE & HUMIDITY TRANSMITTER (4~20mA hoặc RS485)

  • Manufacturer: Adtek
    Model: HTP
  • Contact
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: ADTEK - Taiwan
Model: HTP
Warranty: 12 month
Made in: Taiwan

Range:
- Temp:
+ None LCD type:0~100, 0~50, -50~50, Free range (-20~80)°C,3 range
by PCB jumper
+ LCD type:0~100, 0~50, -50~50, Free range(Optional AO:Free range:
-20~80; Low:-30~0, High: 50~100, by button。Optional RS485:Free
range disable)
- Humi: 0.0~99.9%RH
Sensing element: SHT11® , Epoxy
- Temp:
+ Band-gap sensor;Drift/annual:< 0.04°C /year; HTP-X-NT-X-N-X
+ Temperature only,temperature sensor by LM35(National semiconductor)
- Humi: capacitive sensor element,Drift/annual:< 0.5%RH/year
Accuracy:
- Temp: ≦±0.5°C @25°C / ≦±1.2°C (0~50°C)
- Humi: ≦±3%RH(20~80%) / ±4%RH(0~10%,90~100%)
Response time:
- Temp: Condition 30s (Still air) / 5s (Duct air speed 3m/s), 63%, 25℃
- Humi: Condition 30s (Still air) / 4s (Duct air speed 3m/s ), 63%, 25℃
Display: LCD Grey,8.0mm height
Analog. output: 4~20mA
Rs485
Casing: 88(W) x 120(H) x 50(D)

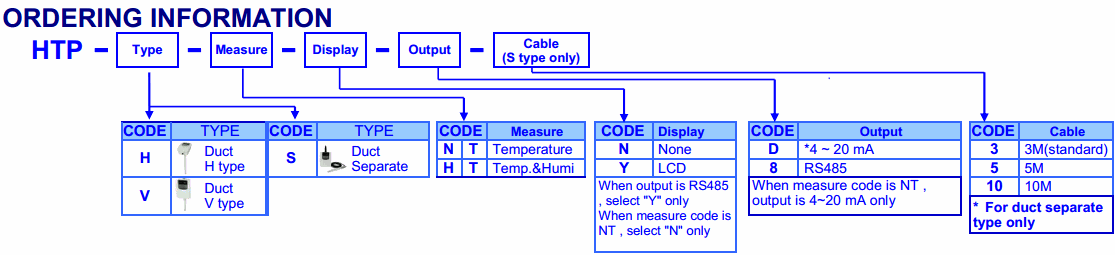

Select the bottom ordering

Datasheet
