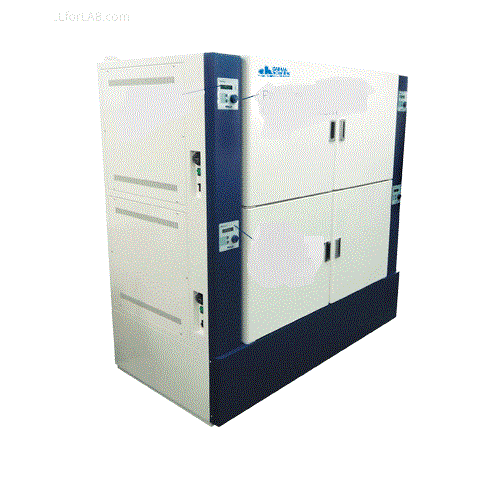

DaiHan WIM-4 Multi-Room Incubator (125 Lit×4 Rooms, 70℃)

Temp. Range: R/T +5°C~70°C

Circulation: Forced-air (Blower FAN)

Capacity: 125 Lit x 4 Rooms

Temp.Accuracy: ±0.2°C at 37°C

Temp.Uniformity: ±0.3°C at 37°C, ±0.7°C at 50°C

Heat-up Time: 15 min. to 37°C, 30 min. to 50°C

Recovery Time(Door open 30 sec): 8 min. to 37°C, 10 min. to 50°C

Heating: 500 W x 4ea

Timer & Alarm: 99hr 59min (with delay/Continuous run.), Error status & Timer-end

Storage: Temp. and Time

Display: Digital LCD with Back-Light Function

Controller: Digital Fuzzy Controller with Jog-Shuttle Switch (Turn & Push)

Inner Door: with 4ea of Inner Tempered Glass Door

Shelves(Included): 2ea of PE-coated Steel Shelves

Permitted Total Load: Total load 128 kg (16kg x 8 Shelves) (2 for each Chamber)

Safety Circuit: Over Temp. and Over Current Protector, Sensor Error Detector

Material: Internal: Stainless-steel(#304), Corrosion Resistant, External: Powder Coated-steel

Dimension(w x d xh):

+ Interior(mm): 500 x 500 x h500 (x4 Rooms)

+ Exterior(mm): 1655 x 845 x h1710

Net Weight/Gross Weight: 343 kg/441 kg

Packing size (mm) : 1900 x 1050 x 1950

Power Consumption: 2.6 kW

Electrical Reqts: 1 Phase, AC 230 V, 50/60 Hz

Optional: Wire Shelf, Stainless steel DH.WIM34126
