Dynaflox DMTFC wall-mount Insertion Transit Time Ultrasonic Flow Meters

  • Manufacturer: Dynaflox
    Model: DMTFC
  • Contact
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment



Manufacture: Dynaflox
Made in: China

Transmitter


Power Supply: standard 115/230VAC 50/60Hz, 5 VA max
Velocity: -0 ~ ±40 ft/s (0 ~±12m/s)
Display: LCD 4x16
Units Rate Totalized: User Configured (English and Metric);
Output: 4~20 mA, OCT pulse, relay, RS232; options: up to 8 GB Data logger
Accuracy: ±1.0% of reading at rates >0.5 m/s
                 ±2.0 % of reading at rates <0.5 m="" s="" br=""> Sensitivity: Flow Rate: 0.001ft/s (0.0003m/s)
Repeatability: 0.2% of reading
Security Keypad lockout, access code enable
Dimensions and Weight:  260 x 193 x 80 mm Weight: <2.5kg

Transducer
Liquid Types Supported: Virtually most any liquid containing less than 2% total suspended solids (TSS) or aeration
Suited Liquid Temperature:
Std. Temp.: -40℃~121℃
High Temp.: -40℃~250℃
Pipe range: DN65-4500
Cable length: standard 6m, can be optional 300m.
Dimension: std : 20 x 190mm, weight <0.6kg. extended:="" 20="" x="" 325mm="" weight="" 1="" 6kg="" br="">

Series DMTFC wall-mount Insertion Transit Time Ultrasonic Flow Meters

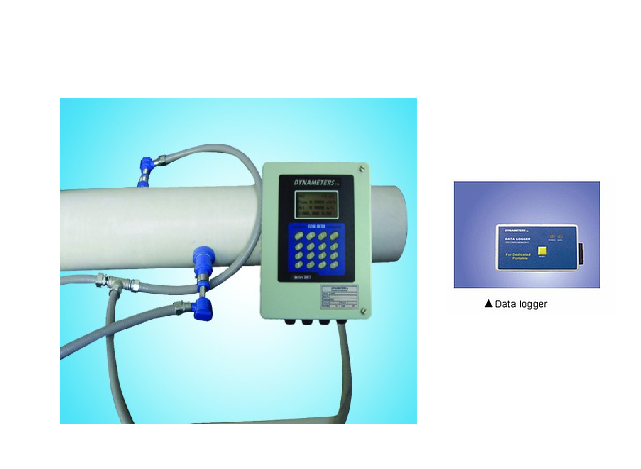

wall-mount Insertion Ultrasonic Flow Meter

Features:
1.      Hot-tapped installation, no pipe line flow interrupted.
2.      Internally configured batch controller makes batch control convenient and accurate.
3.      Spool-piece transducer for best accuracy (better than ±1.0% read) and better long-term stability.
4.      No moving parts, no pressure drop, no maintenance.
5.      Wide bi-directional Flow range of 0 to 40 ft/s (0 to 12 m/s), totalizer for net, positive and negative flow display.One meter suitable for a wide range of pipe sizes from DN65 to DN4500(mm).
6.      Signal quality tracking and self-adjusting functions.
7.      Available with extended insertion transducers for cement pipe line, wall thickness less than 100mm permitted.
8.      Up to 8GB SD card data logger optional, can memory flow rate, total flow, velocity and time. Time interval can be freely setup by user.
9.      Insertion transducers are suitable for high temperature of -40~150.

 Specifications
wall-mount Insertion Ultrasonic Flow Meter
