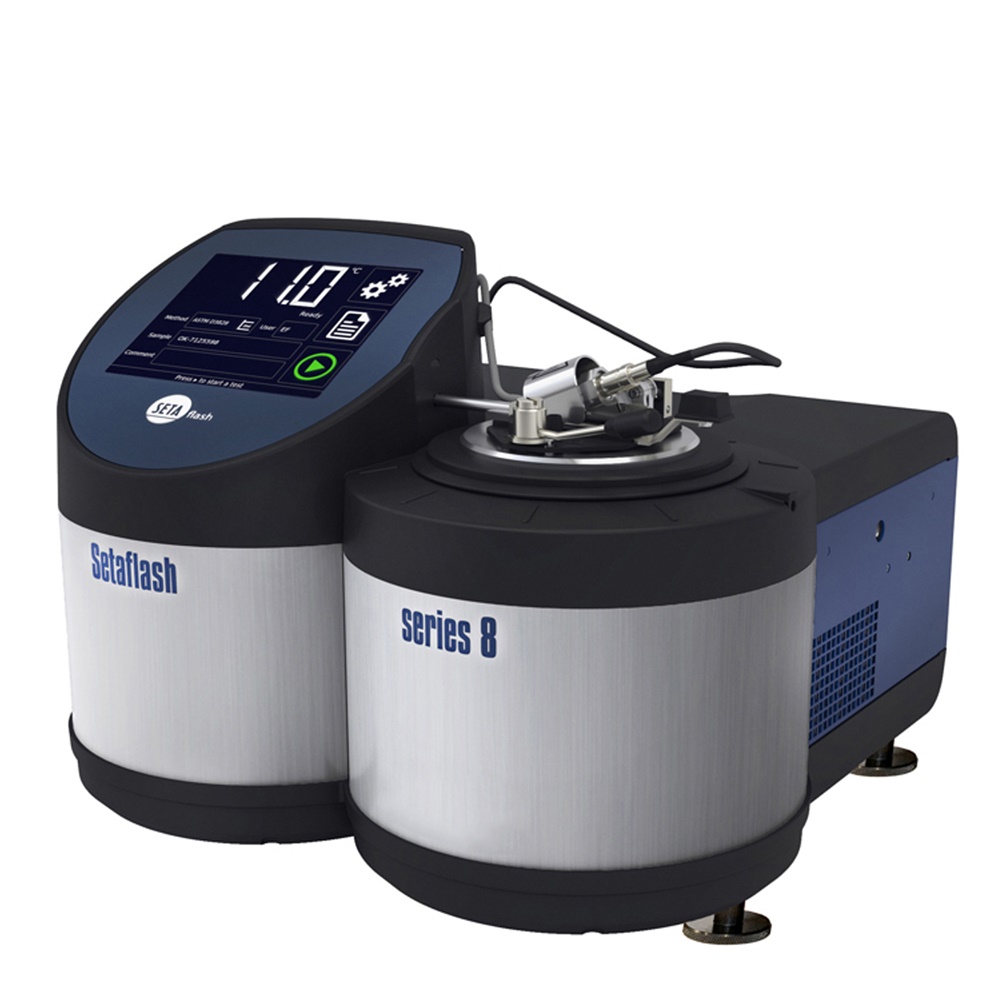

ELCOMETER 6910 Setaflash ‘Series 8’ Closed Cup Tester (300°C)

Temperature Range: Ambient to 300°C (Ambient to 572°F)

Sample Size: 2ml (0.067fl oz) or 4ml (0.135fl oz) according to method

Test Modes: Rapid Equilibrium and Ramp

Test Duration Rapid Equilibrium Mode: 1 minute below 100°C (212°F), 2 minutes above 100°C (212°F)

Test Duration Ramp Mode: Typically 7 minutes

Cool Down Time: 80°C to 20°C (176°F to 68°F) in 4 minutes

Cup Material: Aluminium

Dimensions: 300 x 340 x 380mm (11.8 x 13.4 x 15.0”)

Weight: 8kg (17.6lb)

Packing List: Elcometer 6910 Setaflash ‘Series 8’ Closed Cup Tester, mains power cable, 2ml (0.067fl oz) syringe, programming plug, 2mm Allen key, 2.5mm Allen key, ‘O’ ring fitted, certified flash point material (50ml/1.7fl oz), quality assurance certificate and operating instructions
