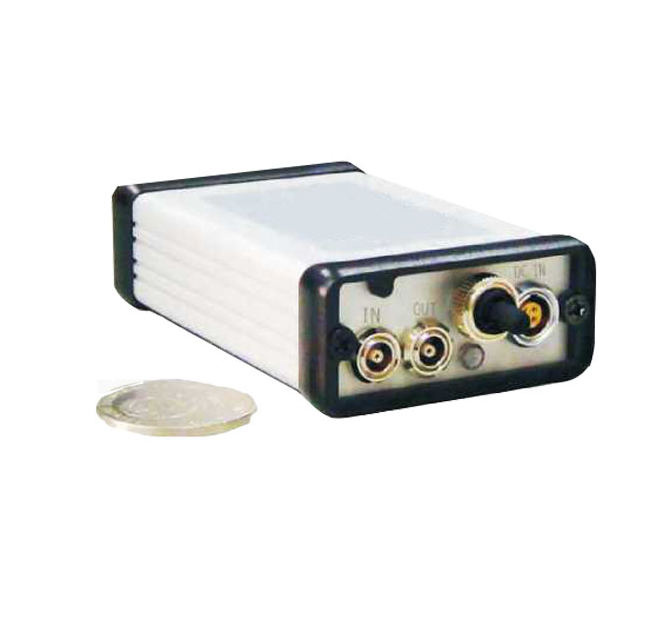

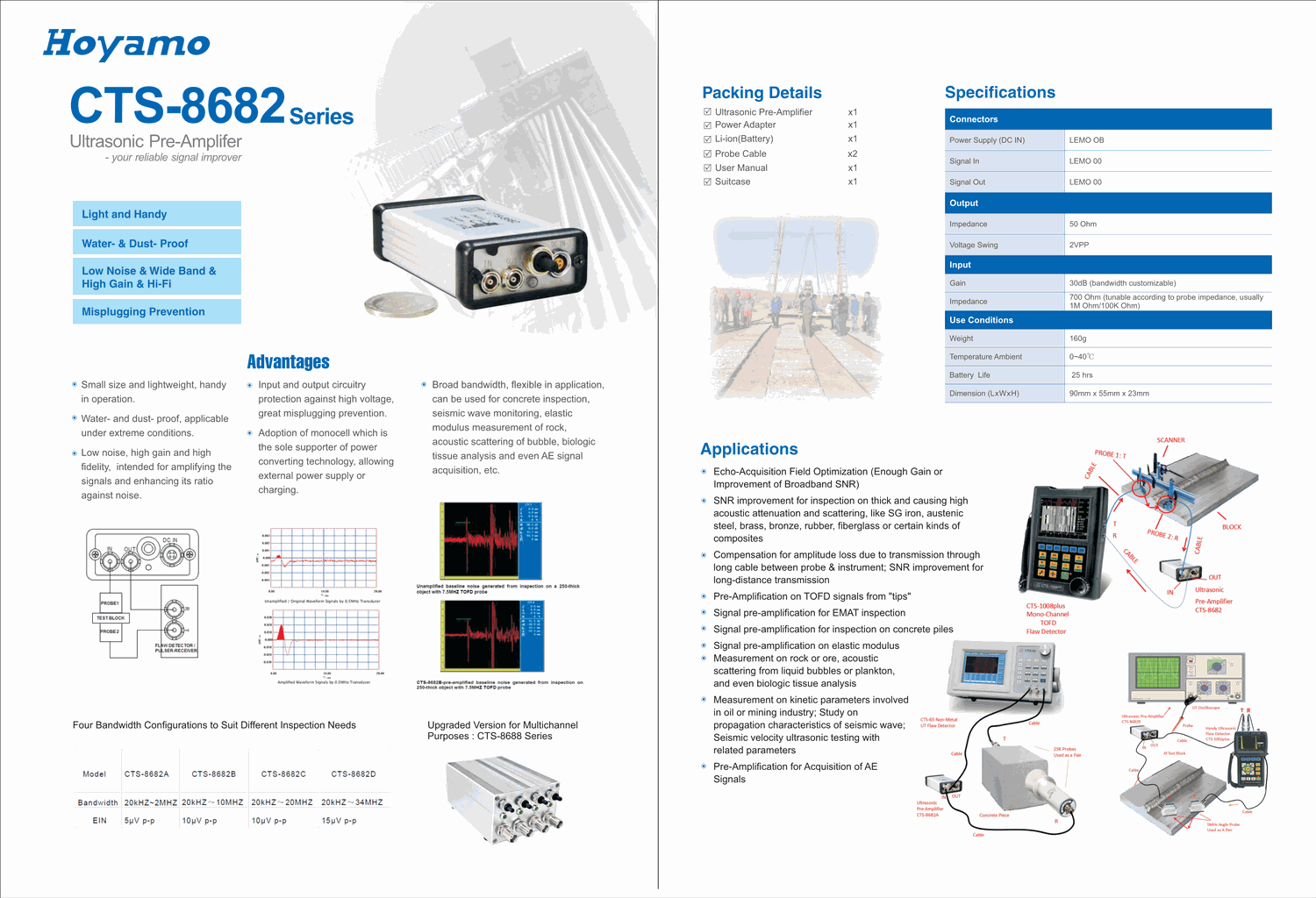

Hoyamo CTS-8682B Ultrasonic Pre-Amplifer (20kHz~10MHz)

Bandwidth: 20kHz~10MHz

EIN: 10µV p-p

Input Gain: 30dB(customizable bandwidth)

Input Impedance: 700Ω(Tunable accoridng to the probe impedance, generally 1MΩ,100KΩ)

Output Impedance: 50Ω

Output Voltage swing: 2VPP

Battery life: 25 hours

Signal In/Out: LEMO 00

Power Supply (dc in): LEMO OB

Size/Dimensions: 90mm×55mm×23 mm

Weight: 160g

Packing details:

  • Main unit

  • Power adapter

  • Li-ion battery

  • Probe cable 2

  • User manual

  • Suitcase


Details

Ultrasonic Pre-Amplifer
