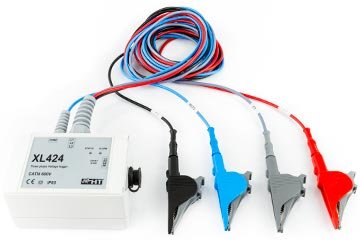

HT Instrument XL424 TRMS three-phase voltage data logger (0~600V,±(1.0%rdg+2dgt))

  • Manufacturer: HT Instruments
    Model: XL424
    Guarantee: 12 month
  • 592.85
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: HT Instrument

Model: XL424

Items: XL424

Warranty: 12 months


VOLTAGE:

Range  : 0 ÷ 600V

Resolution: 0.1V

Accuracy: ±(1.0%rdg + 2dgt)

Sampling rate: 64 point in 20ms for each sampling period.

Sampling period: 1s, 6s, 30s, 1min, 5min

Memory capacity: 1Mbyte; Autonomy in days (depending on batteries autonomy): 5(1s) ; 34(6s) ; 170(30s) ; 364(1min); 1820(5min)

PC interface: RS-232

Operating Temperature / Humidity: -20°C to 60 °C ; 0 - 100%RH (RS-232 connector closed)

Storage Temperature / Humidity:-20°C to 60 °C ; 0 - 100%RH (RS-232 connector closed)

General information:

• Insulation: class 2 (double insulation).

• Altitude max: 2000m

• Protection degree: IP65 (RS-232 connector closed)

Power supply:

• 2x1.5V alkaline battery type LR6-AA-AM3-MN1500

• Battery autonomy: >6months

Dimension:

• 120 (L) x 80(La) x 43(H) mm

• Length test leads: 2.6m

Weight: about 500g (with internal batteries).

Reference Standards:

• LVD: EN 61010-1 CAT III 600V (to ground and between inputs)

• EN61326 (1997)+ A1 (1998) +A2 (2001)

Included Accessories:

BORSA2000 Bag for transporting

TOPVIEW2004 Windows software for PC + serial cable C2004

VELCRO

KITXL423C

Batteries and user manual
