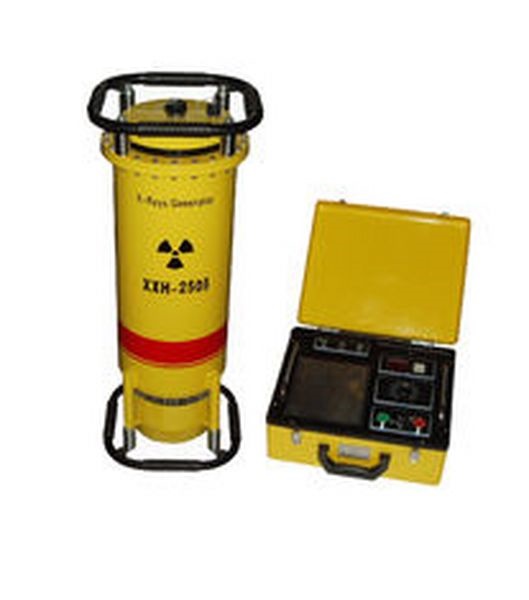

XXH-2505 Huatec Automatic self-test radiation portable X-ray flaw detector with glass x-ray tube

  • Manufacturer: HUATEC
    Model: XXH-2505
  • Contact
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment
Manufacturer: Huatec
Model: XXH-2505
Made in China

Feature:
●Checking the software and hardware itself after start the machine
●Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports
●Can adjust exposure parameters with keys ( easy operation.)
●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field
●Can adjust high voltage slowly for protecting X-ray generator
●Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.
●Including complete protecting system: over KV, low mA, over mA, over temperature and optical-sound alarming
●Convenient for repairing and maintenance
●Much more Substance for structure designing, much more convenient for local operation
●Time can be changed for±0.3 according to the power supply net to make the exposure more precise
Specification:



Output voltage

(Kv)

Input

(KW)

Focus spot

(mm)

Beam angle

Max penetration

(mm)

Weight (KG)

Dimensions (mm)



Level target

Cone target

Level target

Cone target

Generator

Controller

Generator

Controller

XXH-2505

150-250

2.5

1.0x2.4

25°+5°

 30°+5°

37

 34

33.5

11

320x320x740

350x290x160

Standard Delivery

Directional glass X-ray tube

 1 Pcs



Generator

 1 Set



High voltage joins cable

 1 Pcs

25 Meters

Controller

  1 Set



Power cable

 1 Pcs

10 Meters

Grounding cable

 1 Pcs

5 Meters

Accessories

  1 Set



(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)
