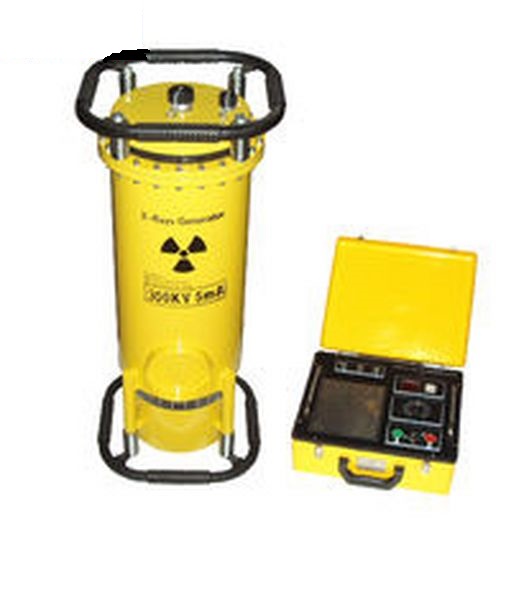

XXQ-3005 Directional radiation portable X-ray flaw detector glass x-ray tube max penetration 50mm

  • Manufacturer: HUATEC
    Model: XXQ-3005
  • Contact
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment
Manufacturer: Huatec
Model: XXQ-3005
Made in China

Feature:

Checking the software and hardware itself after start the machine
Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports
Can adjust exposure parameters with keys ( easy operation.)
Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field
Can adjust high voltage slowly for protecting X-ray generator
Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.
Including complete protecting system: over KV, over KV, low mA, over mA, over temperature and optical-sound alarming
Convenient for repairing and maintenance
Much more Substance for structure designing, much more convenient for local operation
Time can be changed for±0.3 according to the power supply net to make the exposure more precise

Specification:

Output voltage

(Kv)

Input

(KW)

Focus spot

(mm)

Beam angle

Max penetration

(mm)

Weight (KG)

Dimensions (mm)

Generator

Controller

Generator

Controller

170-300

3.0

3.5X3.5

40°+5°

50

42

18

335x335x835

350x290x160

Standard Delivery

Directional glass X-ray tube

 1 Pcs



Generator

 1 Set



High voltage joins cable

 1 Pcs

25 Meters

Controller

  1 Set



Power cable

 1 Pcs

10 Meters

Grounding cable

 1 Pcs

5 Meters

Accessories

  1 Set



(Including: alarm lamp, 1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)
