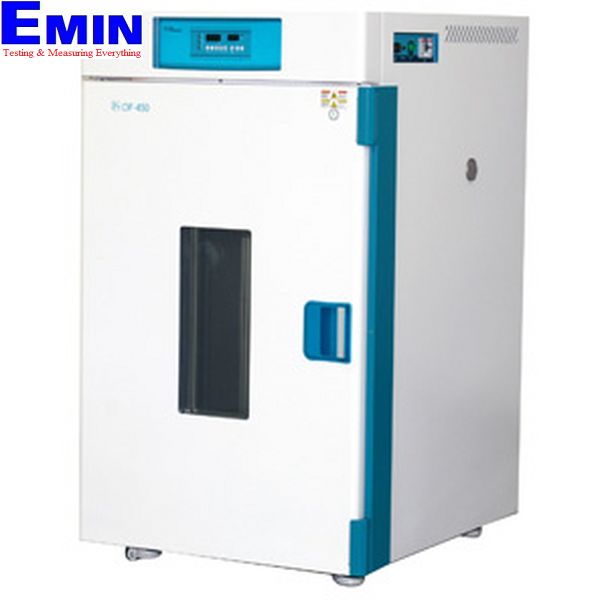

Jeiotech OF-450GW Forced Convection Ovens (450L, 200 ℃, Viewing window door type)

Manufacturer:Jeiotech
Made in Korea
Model: OF-450GW (Viewing window door type)
Code: AAH181214
Microprocessor PID control
Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min
Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad
High temperature limit setting and open door alert
Convenient presetting function for 3 most commonly used temperature settings
Operation mode selection after power recovery: either Automatic or Manual Run
RS-232 interface
Forced air, Adjustable 5-speed fan
Chamber volume: 450 L
Temperature Range: Amb. +10 to 200 ℃
Temperature Fluctuation: ±0.1 ℃ at 100℃
Temperature Variation: ±0.7 ℃ at 100℃
Dimension Interior : 645×750×930mm
Dimension Exterior: 835×1020×1505mm
weight: 210 kg
Power: (380V, 3 ph, 50 / 60 Hz)/6.5A
Include: 3 Wire Shelves

Detail

Download Cataloge Jeiotech

Operational Features

  • Microprocessor PID control
  • Simple calibration and auto-tuning function
  • Temperature control
    - OF-G models: 10°C above ambient to 200°C
    - OF-H models: 10°C above ambient to 300°C
  • Delayed ON/OFF digital timer range: 1 min ~ 99 hr 59 min
  • Intuitive control panel with bright LED display (0.1℃ resolution) and touch-sensitive keypad
  • High temperature limit setting and open door alert
  • Convenient presetting function for 3 most commonly used temperature settings
  • Operation mode selection after power recovery: either Automatic or Manual Run
  • RS-232 interface


Constructional Features

  • Forced air convection generated by two noiseless and powerful sirocco fans ensuring optimal air circulation, temperature uniformity, and short heat-up time
  • Threefold tempered-glass window providing clear inside view of the chamber (optional)
  • Rounded inner chamber corners for easy cleaning and optimal airflow
  • Corrosion-resistant incoloy sheath heating element and stainless steel interior
  • Adjustable dual slide vents for controlling inner vapor circulation (diameter: 38mm/1.5”)
  • Adjustable 5-speed fan for controlling inner circulation rate
  • Built-in casters for easy transport
  • Large chamber capacity (maximum 760L/28.8cu ft)
  • Optional recorders:
    - 6-point dot type recorder with digital display
    - Thermal line recorder with digital display
  • Model

    OF-300G

    OF-450G

    OF-750G

    OF-300H

    OF-450H

    OF-750H

    Chamber volume
    (L / cu ft)

    314 / 11.0

    450 / 15.9

    760 / 26.8

    314 / 11.0

    450 / 15.9

    760 / 26.8

    Temperature

    Range ( / )

    Amb. +10 to 200 / Amb.+18 to 392

    Amb. +10 to 300 / Amb.+18 to 572

    Fluctuation 1)
    / ) at 100

    0.2 / 0.36

    0.1 / 0.18

    0.2 / 0.36

    0.2 / 0.36

    0.2 / 0.36

    0.2 / 0.36

    Variation 1)
    / ) at 100

    0.9 / 1.6

    0.7 / 1.3

    1.5 / 2.7

    0.9 / 1.6

    0.8 / 1.4

    1.9 / 3.4

    Dimension
    (W×D×H)

    Interior
    (mm / inch)

    645×750
    ×650
    / 25.4×29.5
    ×25.6

    645×750
    ×930
    / 25.4×29.5
    ×36.6

    745×850
    ×1200
    / 29.3×33.5
    ×47.2

    645×750
    ×650
    / 25.4×29.5
    ×25.6

    645×750
    ×930
    / 25.4×29.5
    ×36.6

    745×850
    ×1200
    / 29.3×33.5
    ×47.2

    Exterior
    (mm / inch)

    835×1020
    ×1225
    / 32.9×40.2
    ×48.2

    835×1020
    ×1505
    / 32.9×40.2
    ×59.3

    955×1140
    ×1775
    / 37.6×44.9
    ×69.9

    835×1020
    ×1225
    / 32.9×40.2
    ×48.2

    835×1020
    ×1505
    / 32.9×40.2
    ×59.3

    955×1140
    ×1775
    / 37.6×44.9
    ×69.9

    Net weight
    (Kg / lbs)

    175 / 386

    210 / 463

    280 / 617

    210 / 463

    250 / 551

    335 / 739

    Electrical Requirements
    (230V, 1 ph, 50 / 60 Hz)

    12.7A











    Cat. No.

    Solid door type

    AAH18015

    -

    -

    -

    -

    -

    Viewing window door type

    AAH18115

    -

    -

    -

    -

    -

    Electrical Requirements
    (230V, 3 ph, 50 / 60 Hz)



    10.0A

    13.8A

    10.0A

    13.8A

    16.8A

    Cat. No.

    Solid door type

    -

    AAH180213

    AAH180313

    AAH190113

    AAH190213

    AAH190313

    Viewing window door type

    -

    AAH181213

    AAH181313

    AAH191113

    AAH191213

    AAH191313

    Electrical Requirements
    (380V, 3 ph, 50 / 60 Hz)



    6.5A

    8.8A

    6.5A

    8.8A

    10.6A

    Cat. No.

    Solid door type

    -

    AAH180214

    AAH180314

    AAH190114

    AAH190214

    AAH190314

    Viewing window door type

    -

    AAH181214

    AAH181314

    AAH191114

    AAH191214

    AAH191314

Wire shelf

Wire shelf


Stainless steel and electro polished shelf system is removed easily without using tools for easy cleaning.

Models Description Cat. No.
Included Maximum W×L(mm/inch)
OF-02G 2 8 366×316 / 14.4X12.4 EDA8136
OF-12G 2 12 446×366 / 17.6X14.4 EDA8135
OF-22G 2 14 516×416 / 20.3X16.4 EDA8134
ON-02G 2 8 366×316 / 14.4X12.4 EDA8136
ON-12G 2 12 446×366 / 17.6X14.4 EDA8135
ON-22G 2 12 576×419 / 22.7X16.5 EDA8137
OF/ ON-01E 2 10 366×316 / 14.4X12.4 EDA8136
OF/ ON-11E 2 14 446×366 / 1
