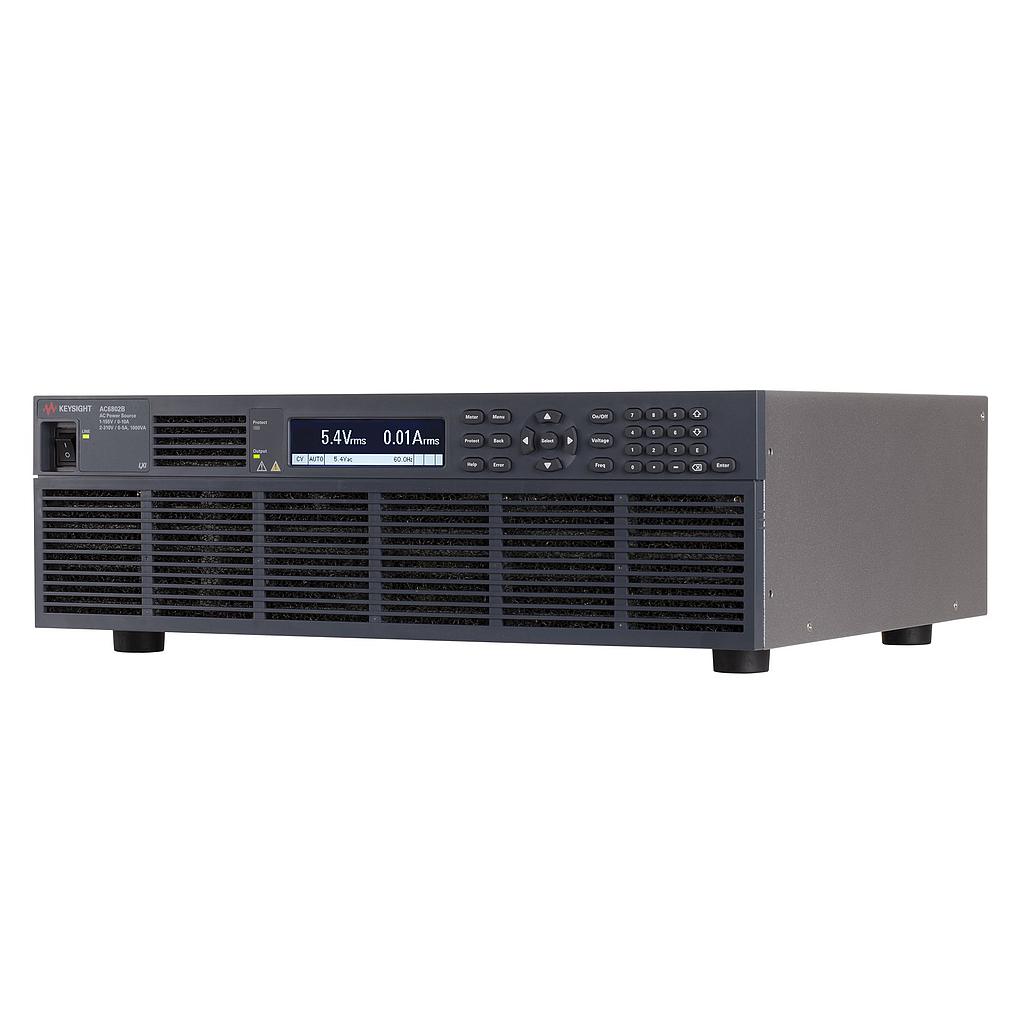

KEYSIGHT AC6802B Basic AC Power Source (1000VA, 310V, 5A)

• Phases: Single-phase

• Maximum output Power: 1000 VA

• AC output mode:

Voltage range: 155 Vrms / 310 Vrms

Voltage setting accuracy 0.3%/0.25% full-scale

Maximum rms current: 10 A/5 A

Maximum peak current 30 A/15 A

Frequency 500 Hz

Measurements Voltage, current, power

• DC output mode:

Voltage range: 190 V/380 V

Max current: 8 A/4 A

Maximum instantaneous current: 24 A/12 A

Power capacity: 800 W

• I/O: LAN/LXI Core and USB; Optional: GPIB
