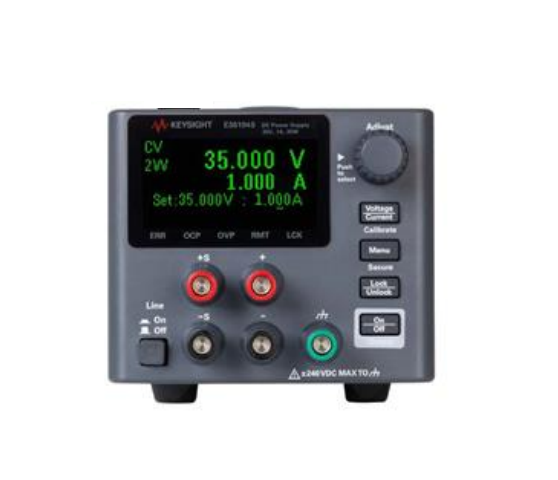

KEYSIGHT E36104B Bench Power Supply (35V, 1A)

• Max Output Rating: 35V, 1A

• Ripple & Noise (20 Hz to 20 MHz): RMS 1.2 mV; RMS 400 μA

• Overvoltage protection (OVP): 0.6 V

• Command processing time: < 10 ms

• Accuracy 12 months (23 ºC ± 5 ºC)

Voltage 0.05% + 12 mV

Current 0.05% + 0.6 mV

• I/O interfaces: LAN (LXI Core) and USB 2.0 FS (TMC488)

• AC input: 230 V input (± 10%), 47 to 63 Hz, 200 VA

• Overall dimension (H x W x D): 2U, 1/4 rack (102 x 106 x 365 mm)

• Weight: 3.6 kg
