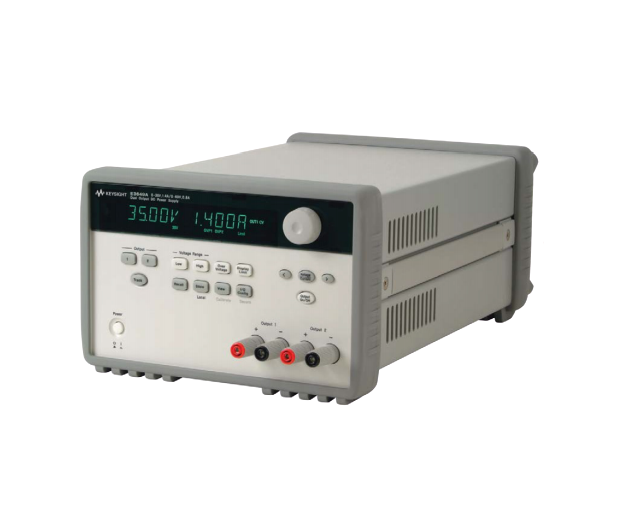

KEYSIGHT E3645A Programmable DC Power Supply (0-35V/2.2A & 0-60V/1.3A, 80W)
Manufacturer: KEYSIGHT Model: E3645A Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
• Maximum power: 80 W
• Number of outputs: 1
• Output ratings (0°C to 40°C)
Range 1: 0 to 35V/2.2A
Range 2: 0 to 60V/1.3A
• Programming accuracy (@25°C±5°C):
Voltage: <0.05% + 10 mV
Current: <0.2% + 10 mA
• Ripple & noise 20 Hz to 20 MHz
Normal Mode Voltage: <5 mVpp / 0.5 mVrms
Normal Mode Current: <4 mArms
• Load and line regulation:
Voltage < 0.01% + 3 mV
Current < 0.01% + 250 μA
• Resolution:
Program < 5 mV/1 mA
Readback < 2 mV/1 mA
Meter 10 mV/1 mA
Settling time 3 < 90 ms
• Power cord: AC 100- 230 V, 47- 63 Hz
• Interface: GPIB and RS232
• Weight: 6.7 kg
• Included accessories: Power cord, output voltage wire, instruction manual
