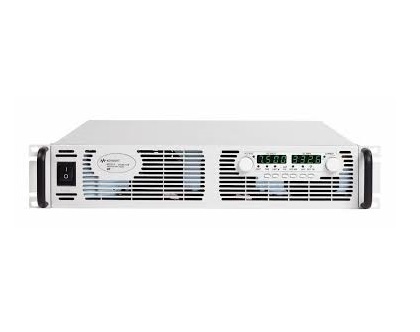

KEYSIGHT N8738A System DC Power Supply (80V, 42A, 3360W)

• DC output ratings: 80V, 42A, 3360W

• Output ripple and noise: 80 mV p-p; 25 mV rms; 80 mA rms

• Programming accuracy: 0.05%+ 40 mV; 0.1%+ 84 mA

• Measurement accuracy: 0.1%+ 80 mV; 0.1%+ 126 mA

• Command response time: 100 ms

• Over-voltage protection: 5-88 V

• Operating temperature: 0°C to 40°C @ 100% load

• Storage temperature: –20°C to 70°C

• Operating humidity: 30% to 90% relative humidity (no condensation)

• Storage humidity: 10% to 95% relative humidity (no condensation)

• Interface capabilities: GPIB, USB 2.0, 10/100 LAN, LXI

• Dimensions (excluding connectors, and handles) HxWxD: 88 x 423 x 442.5 mm

• Weight: 13 kg


Detail

Datasheet
