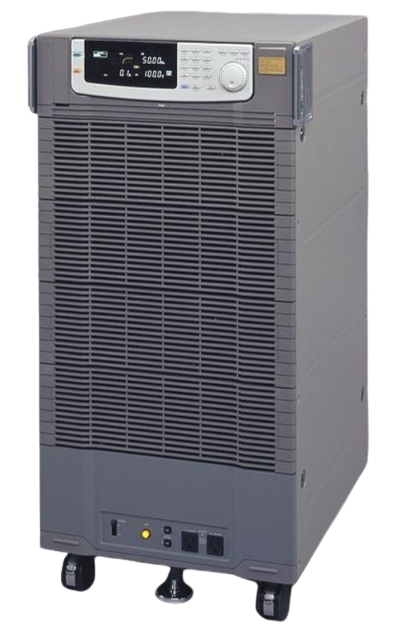

KIKUSUI PCR8000W High Efficiency AC Power Supply (80A/40A, 8kVA)
Manufacturer: KIKUSUI Model: PCR8000W Guarantee: 12 Month - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
- Input rating: 170 to 250 V, single-phase, 47 to 63Hz
- Output rating for AC mode:
Rated voltage range: 1 to 150 V / 2 to 300 V
Output phase: Single phase
Maximum current: 80A/ 40A
Power capacity: 8kVA
Frequency setting range: 1 to 500.0Hz
- Output rating for DC mode:
Rated voltage range: 1.4 to 212 V / 2.8 to 424 V
Maximum current: 40A/20A
Power capacity: 4 kVA
- Output voltage stability: Within ±5 × 10-5, Setting accuracy: within ±1 × 10-4
Output voltage response time: 60µs
Measured value display: Voltage, Current, Power
- Interfaces: RS232C (option), GPIB (option)
- Accessories: 3 pcs. of a single-core cable;
Wire diameter: (conductor cross-section area/length) 14mm2/5m
