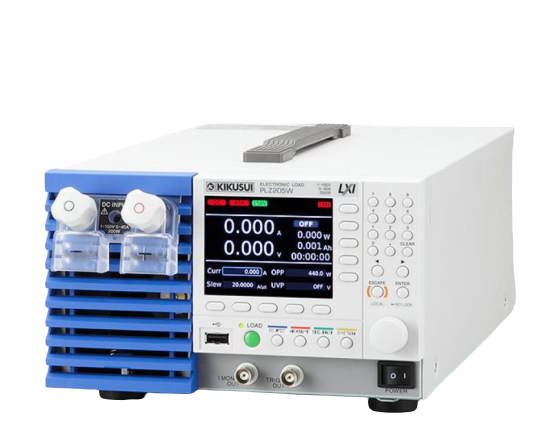

KIKUSUI PLZ405W Multifunctional DC Electronic Load (80A, 400W)

Rating:

Operating voltage (V): 1 to 150

Current (A): 80

Power (W): 400

Constant current mode (CC)

Setting range:

H range (A): 0 to 84, ± (0.2% of set + 0.1% of range)

M range (A): 0 to 8.4, ± (0.2% of set + 0.3% of range)

L range (A): 0 to 0.84, ± (0.2% of set + 1% of range)

Ripple: 8 mArms

Constant voltage mode (CV)

Setting range:

H range (V): 0 V to 157.5, ± (0.1% of set + 0.1% of range)

L range (V): 0 V to 15.75, ± (0.1% of set + 0.1% of range)

Constant resistance mode (CR)

Setting range:

H range (S): 84 to 0, ± (0.5% of set + 0.5% of range)

M range (S): 8.4to 0, ± (0.5% of set + 0.5% of range)

L range (S): 0.84 to 0, ± (0.5% of set + 1.5% of range)

Constant power mode (CP)

H range (W): 0 to 420, ± (0.5% of range + 0.008 A × Vin)

M range (W): 0 to 42, ± (0.5% of range + 0.016 A × Vin)

L range (W): 0 to 4.2, ± (1% of range + 0.008 A × Vin)

Interfaces: GPIB (Option), RS232C, USB, LAN

Frequency setting range: 1.0 Hz to 100.0 kHz

Accessories: Power cord, Rear-panel load input terminal cover, Load input terminal screw set (2 sets), Screws for the rear-panel load input terminal cover (2 pcs.), Frontpanel load input terminal cover, Front-panel load input knob set, External control connector kit, Setup Guide, CD-ROM, Quick Reference, Safety Information
