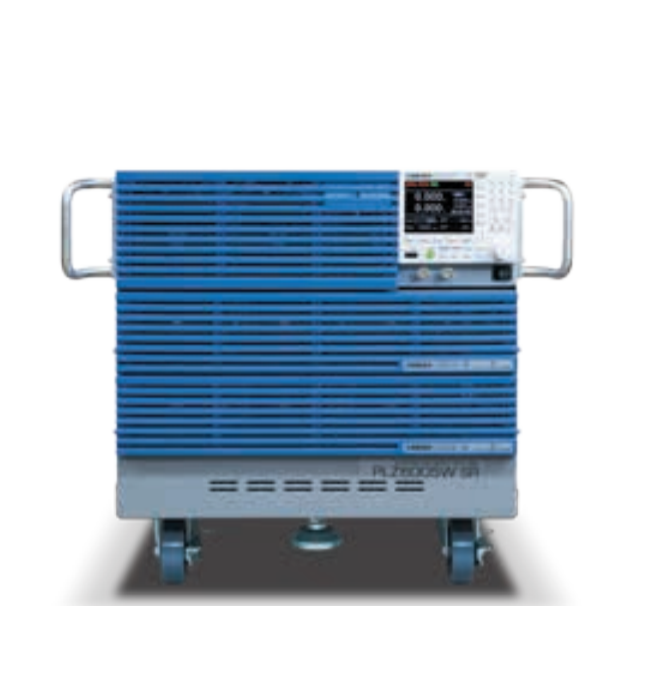

KIKUSUI PLZ6005W SR Multifunctional DC Electronic Load (Smart rack, 6 kW)

Rating:

Operating voltage (V): 1 to 150

Current (A): 1200

Power (W): 6000

Constant current mode (CC)

Operating range:

H range (A): 0 to 1260

M range (A): 0 to 126

L range (A): 0 to 12.6

Ripple: 120 mArms

Constant voltage mode (CV)

Operating range:

H range (V): 0 to 157.50

L range (V): 0 to 15.750

Resolution:

H range (mV): 5

L range (mV): 0.5

Constant resistance mode (CR)

Operating range:

H range (S): 1260 to 0

M range (S): 126 to 0

L range (S): 12.6 to 0

Constant power mode (CP)

H range (W): 0 to 6300

M range (W): 0 to 630

L range (W): 0 to 63.0

Interfaces: GPIB (Option), RS232C, USB, LAN

Weight (kg):  ≈ 82

Power consumption (VA): ≈  275
