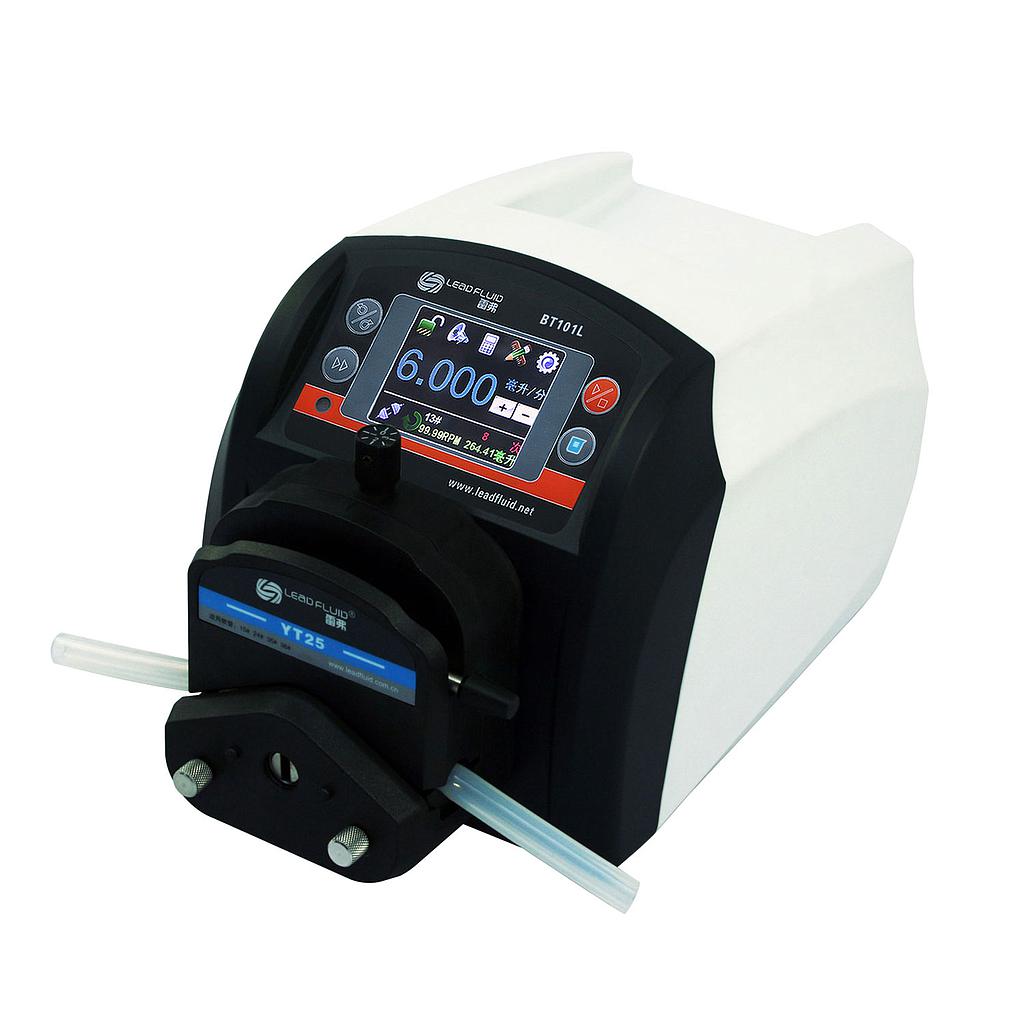

Leadfluid BT101L Intelligent Flow Peristaltic Pump (0.16～720mL/min, 1 CH)

Specifications

Flow range: 0.16～720 mL/min

Speed range: 0.1-150 rpm

Speed resolution: 0.1rpm

Speed accuracy: 0.2%

Power supply: AC 100-240V, 50Hz/60Hz

Power consumption: < 30W

External logic level control signal: 5V, 12V (standard), 24V (optional)

External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)

Communication interface: RS485 MODBUS interface

Operating condition: Temperature 0-40 °C; Relative humidity < 80%

IP grade: IP31

Dimensions (L x W x H): 257 x 198 x 197mm (10.12 x 7.80 x 7.17 inch)

Weight: 4.5 kg (10.6 lbs)
