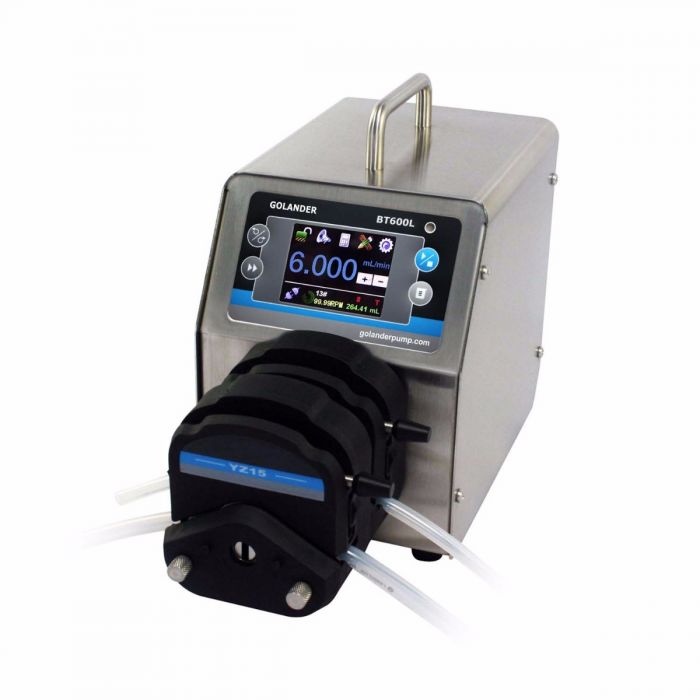

Leadfluid BT600L Intelligent Flow Peristaltic Pump (0.16～2900mL/min, 2 CH)

Specifications

Flow range: 0.16～2900 mL/min

Speed range: 0.1-600 rpm

Speed resolution: 0.1 rpm

Speed accuracy: 0.2%

Power supply: AC 100-240V, 50Hz/60Hz

Power consumption: < 60W

External logic level control signal: 5V, 12V (standard), 24V (optional)

External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)

Communication interface: RS485 MODBUS

Ambient temperature: 0~40°C

Relative humidity: < 80%

IP grade: IP31

Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)

Weight: 5.5 kg (12.1 lbs)
