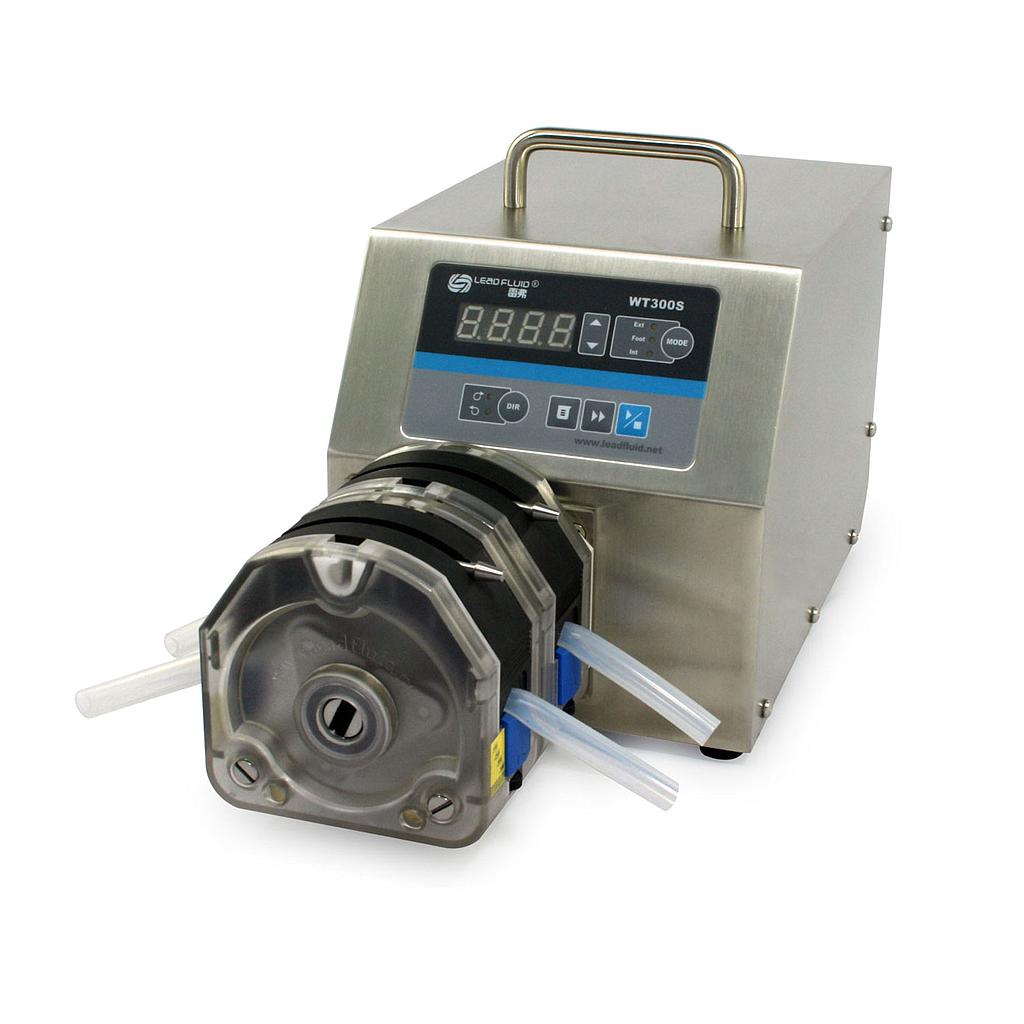

Leadfluid WT300S Basic Variable Speed Peristaltic Pump (3-3500mL/min, 2 CH)
Manufacturer: Leadfluid Model: WT300S P/N: WT300S(2×KZ25-PC) Origin: China Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Specifications
Flow range: 3-3500 mL/min
Speed range: 30-350 rpm/min
Speed resolution(rpm): 1 rpm
Flow accuracy: 3%
Power supply: AC 220V+/-10%, 50Hz/60Hz; AC 100V+/-10%, 50Hz/60Hz
Power consumption: <200W
External logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard), 0-10V, 4-20mA (optional)
Communication interface: RS485 MODBUS interface
Operating condition: 0~40 °C
Relative humidity: < 80%
IP grade: IP31
Dimensions (L x W x H): 286mm x 180mm x 230mm (11.3 inch x 7.1 inch x 9.1 inch)
Weight: 6.2kg (13.9 lbs)
WT300S Suitable Pump Heads and Tubing, Flow Parameters
| Drive type | Pump head | Ch | Tubing size | Flow rate per channel (mL/min) |
| WT300S | YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 3-990 |
| YZ25 | 1 | 15# 24# | 50-990 | |
| 2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17# | 3-990 | |
| 2 x YZ25 | 2 | 15# 24# | 50-990 | |
| 4 x YZ15 | 4 | 13# 14# 16# 19# 25# 17# | 3-990 | |
| 4 x YZ25 | 4 | 15# 24# | 50-990 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 3-1300 | |
| YT25 | 1 | 15# 24# 35# 36# | 50-1600 | |
| 2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 3-1300 | |
| 2 x YT25 | 2 | 15# 24# 35# 36# | 50-1600 | |
| 4 x YT15 | 4 | 13# 14# 16# 19# 25# 17# 18# | 3-1300 | |
| 4 x YT25 | 4 | 15# 24# 35# 36# | 50-1600 | |
| DT15-24 | 2 | 16# 19# 25# 17# | 20-1300 | |
| DT15-44 | 4 | 16# 19# 25# 17# | 20-1300 | |
| KZ25 | 1 | 15# 24# 35# 36# | 80-3500 | |
| 2 x KZ25 | 2 | 15# 24# 35# 36# | 80-3500 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
