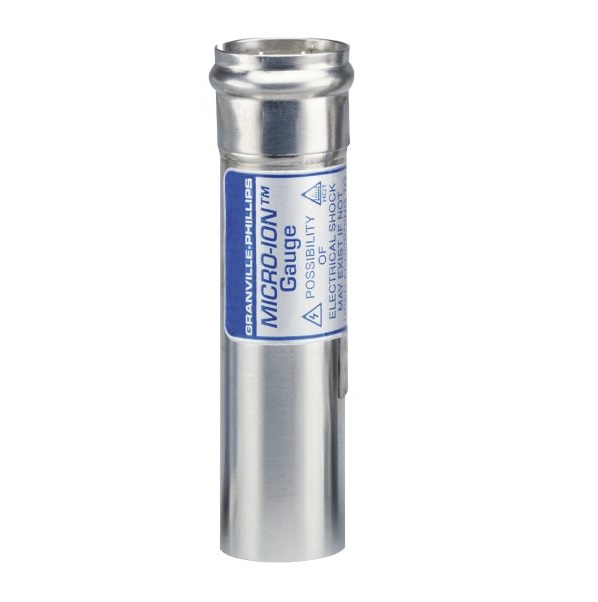

MKS 355 Hot-cathode Bayard-Alpert Vacuum Sensors (0.75 in. Tube; Tungsten)

Sensor Type: Bayard-Alpert Hot Cathode

Measurement Range: 5 x 10-10 to 5 x 10-2 Torr

Fitting Type: 0.75 in. Tube

Filament: Tungsten

Exposed Materials: 304 stainless steel, alumina, tantalum, tungsten, CuAg eutectic, Kovar®

Bake Out Temperature: 200°C max.

Internal Volume: 10.8 cm3 (0.66 in3) to port screen

X-ray Limit: <3 x 10-10 Torr, <4 x 10-10 mbar, <4 x 10-8 Pa
