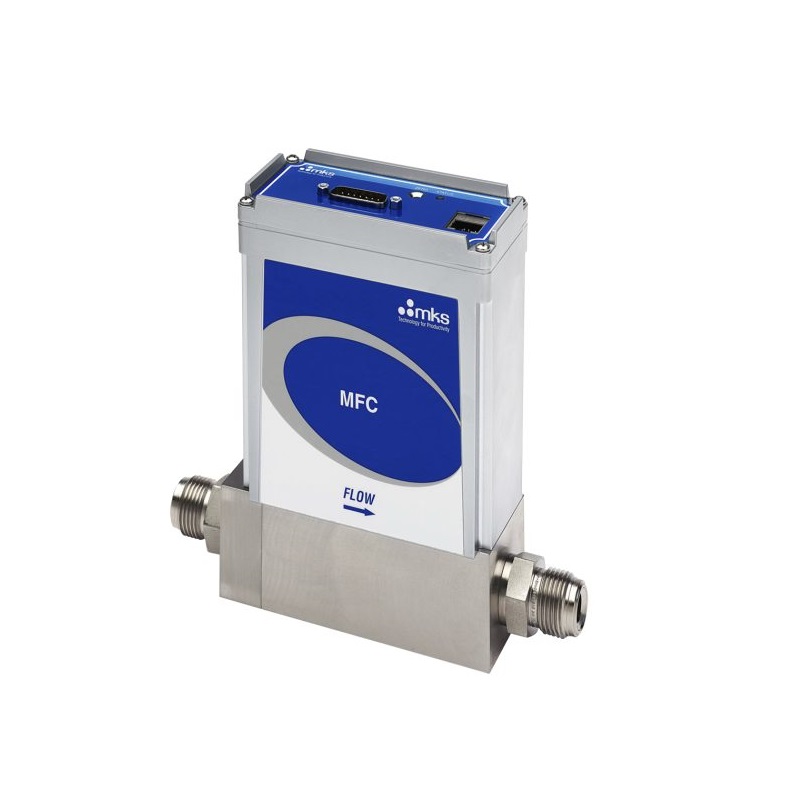

MKS GE300A-MFM Elastomer Sealed Mass Flow Meter (150 - 300 slm)

Measurement Ranges: 0.1% to 100% of Full Scale (range on mech.)

Full Scale Flow Range: 150-300 slm (N2 equivalent)

Analog Connector: 15 pin Type ‘’D’’ male

Maximum Inlet Pressure: 150 psig

Burst Pressure: 1500 psig

Typical Accuracy: ±1% of Reading

Repeatability: ±0.5% of Reading

Resolution: 0.1% of Full Scale

Zero Temperature Coefficient: <0.05% of Full Scale/°C

Span Temperature Coefficient: <0.08% of Reading/°C

Inlet Pressure Coefficient: <0.03% of Reading/psi or less

Warm-up Time: 1 hour

Operating Temperature: 10-50°C

Storage Humidity: 0 to 95% relative humidity, non-condensing

Storage Temperature: -20° to 65°C (-4° to 149° F)

Power Requirements: 15-24 VDC @ (<2 watts)

Weight: <3.4 lbs (1.54 kg)

Compliance: CE

For specific range please check the attachment below!
