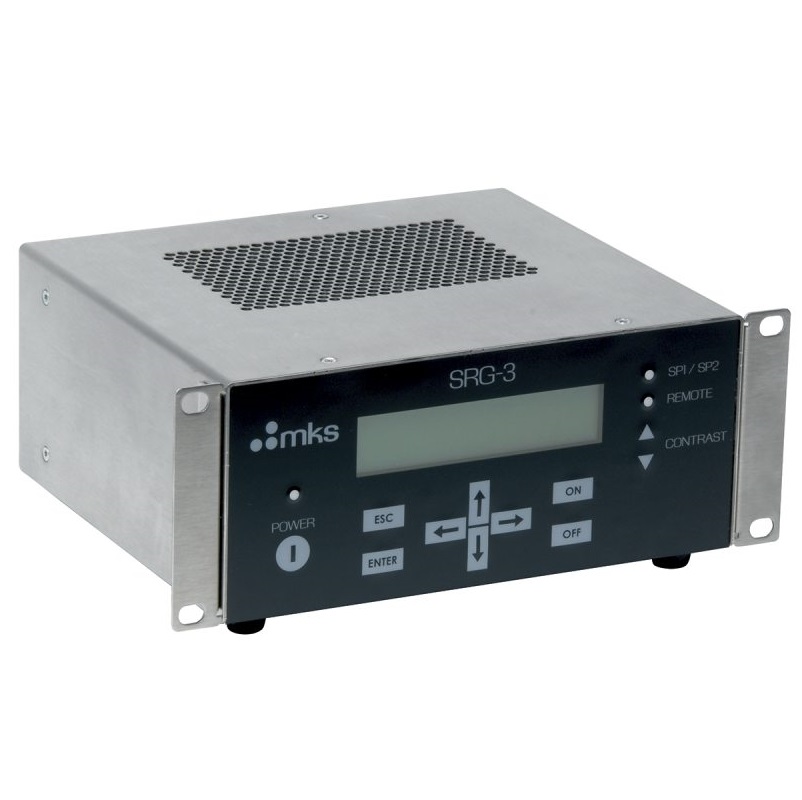

MKS SRG3-EL Spinning Rotor Vacuum Gauge Transfer Standard (5x10^-5 - 100Pa)

Measurement Range: 5 x 10-5 to 100 Pa

Accuracy: up to 1 Pa 1% of measuring value + U 1 to 100 Pa: increasing up to 10% of measured value (typical)

Stability: Better than 1% per year

Display: 4½ digit LCD display

Display Units: Pa, mbar, or Torr

Analog Output: 0-10 VDC, into 2kΩ min. load, linear or logarithmic

Relays: 2 SPDT relays, adjustable, nominal switching capacity (resitive load): 1A 30VDC, 0.5A 25VAC

Digital Communication: RS-232, USB (USB 2.0 compatible)

Operating Temperature: Electronics: 10-40°C

Enclosure: Half 19-inch rack mount or table top 241 x 185 x 88 mm

Weight: 2.5 kg

Power Requirements: 85 to 256 VAC, 47-63 Hz

Compliance: CE
