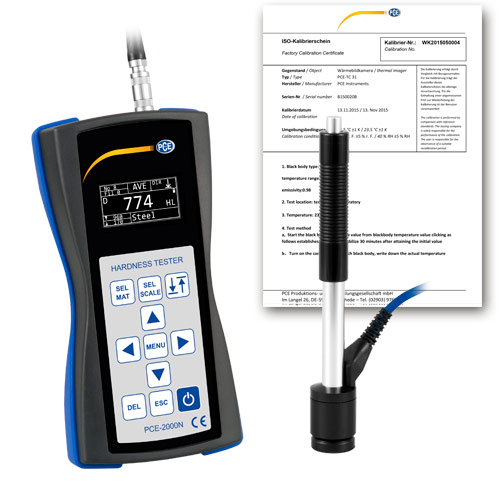

PCE-2000N Hardness tester for metallic materials

  • Manufacturer: PCE
    Model: 2000N
    Guarantee: 12 month
  • 1,051.15
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: PCE-ANH

Model :   PCE-2000N

Warranty : 12 months


Specification

Measuring ranges

170 ... 960 HLD

17.9 ... 69.5 HRC

19 ... 683 HB

80 ... 1042 HV

30.6 ... 102.6 HS

59.1 ... 88 HRA

13.5. .. 101.7 HRB

Impact device included   D

(optional impact devices): (DC, D + 15, C, G, DL)

Cable length impact device: About 1.5 m / 4.9 ft

Accuracy: ± 0.5% (@ 800 HLD)

Repeatability: 0.8% (@ 800 HLD)

Hardness scales HL (Leeb):

HV (Vickers)

HB (Brinell)

HS (Shore)

HRA (Rockwell A)

HRB (Rockwell B)

HRC (Rockwell C)

Measurable materials:

Steel; Cast steel; Alloy steel; Stainless steel; Gray glacé; Ductile iron; Cast aluminum alloy; Cu-zinc (brass); Copper-tin alloy; Copper

Display resolution: 128 x 64 pixel OLED

Data storage: 600 averages in 6 data groups

Data output: USB stick

Power supply: 3 x AAA batteries

Auto Power-Off: if not in use, the device shuts off automatically after 12 minutes

Operating conditions: 10 ... 50°C / 50 ... 122°F, 20 ... 90% rh

Storage conditions: -30 ... 60°C / -22 ... 140°F

Dimensions: 160 x 80 x 40 mm / 6.3 x 3.1 x 1.6 in (H x W x D)

Weight: Measuring device with batteries: approx. 300 g / < 1 lb

Impact device : approx. 75 g / < 1 lb


Delivery contents

1 x Material tester PCE-2000N

1 x Hardness comparison block

1 x Striker type D

1 x Transport case

1 x Cleaning brush

1 x User manual

3 x AAA 1.5V batteries

2 x Stabilization ring

1 x 2 GB USB stick

1 x ISO calibration certificate

Manual
