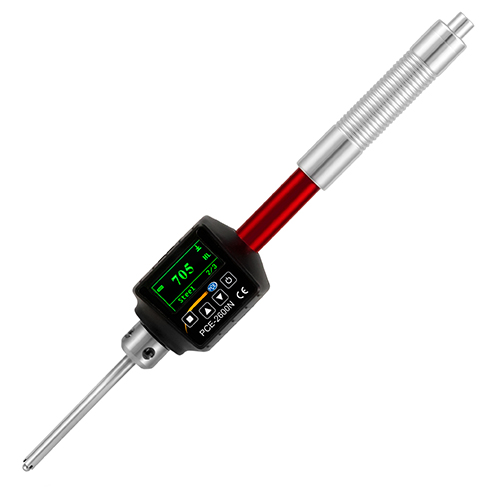

PCE 2600N Material Hardness Tester for Metal

Specification

Measurement method: According to Leeb

Impactor: DL

Measuring range:

HLD: 170 ... 960

HRC: 17.9 ... 69.5

HB: 19 ... 683

HV: 80 ... 1042

HS: 30.6 ... 102.6

HRA: 59.1 ... 88

HRB: 3.5 ... 101.7

Measurement accuracy :    HLD: ± 0.5%

Maximum hardness: 1042 HV

Striker: Type D

Display: 128 x 64 mm /  5 x 2.5 in OLED

Repeatability: HLD: ± 0.8%

Hardness max.: 1042 HV

Measurement units: HLD, HRC, HB, HV, HS, HRA, HRB

Display: 15 mm / 0.59 in


Delivery contents

1 x Material Tester PCE-2600N

1 x Impactor

1 x Calibration block

1 x Cleaning brush

1 x Carrying case

1 x Operation manual

Details

Manual


Datasheet
