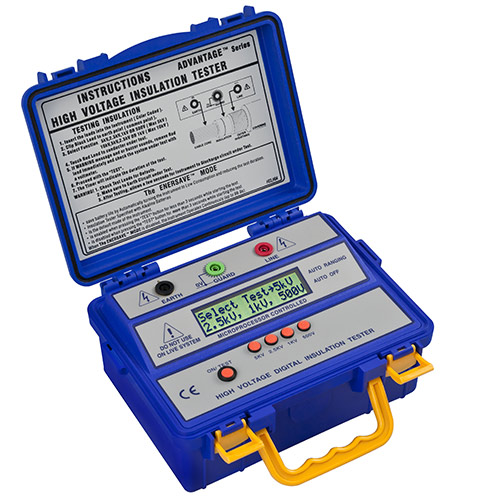

PCE IT413 Insulation Meter (Max 5,000V)

Specification

DC test tension: 500 / 1,000 /; 2,500 / 5,000V

Range of measurement:

30 GΩ / 500V

60 GΩ / 1,000V

150 GΩ / 2,500V

300 GΩ / 5,000V

Accuracy: ± 3%

Potential output: Maximum of 1 watt

Insulation resistance between electrical conduction and the enclosure: 2000 MΩ / 2000V

Static tension between enclosure and circuit: 700V AC for a maximum of 1 minute

AC warning circuit: For tension > 450V AC

Power: 8 batteries (1.5V)

Dimensions: 250 x 110 x 190 mm / 9.8 x 4.3 x 7.5 in

Weight: 1.5 kg / 3.3 lbs

Delivery contents

1 x Insulation Meter PCE-IT413

1 x Color coded silicon test cable

1 x Protective cover for coaxial conductors

8 x AAA batteries

1 x User's manual
