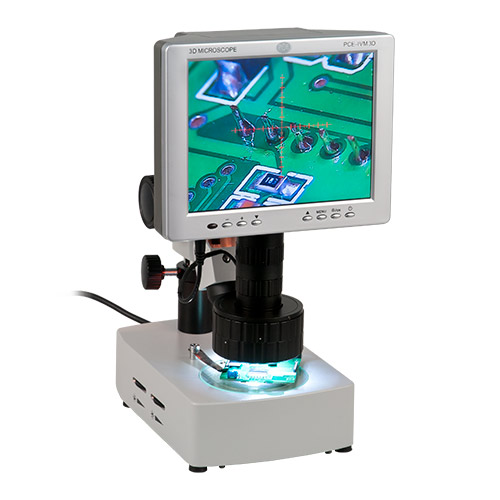

PCE-IVM 3D Inspection Camera (12~75x, 800 x 600 pixel)

  • Manufacturer: PCE
    Model: IVM 3D
    Guarantee: 12 month
  • 3,679.86
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: PCE-ANH

Model :  PCE-IVM 3D

Warranty : 12 months


Specification

Display: 8" LC-display

Resolution: 800 x 600 pixels

Magnification: 12 ... 75-fold continuously

Light source: Transmitted and reflected light continuous leveling

Connections: USB 2.0, AV out

Power Source : 100 ... 240V AC 50 / 60 HZ

System requirements:  Up from Windows 2000/XP

Working height: Min. 10 mm, max. 175 mm / min. 0.39 in, max. 6.9 in

Dimensions: Display: 220 x 160 x 100 mm / 8.7 x 6.3 x 3.9 in

Table: 255 x 155 x 64 mm / 10 x 6.1 x 2.5 in


Delivery contents

1 x Mechanical 3D-microscope PCE-IVM 3D

1 x USB interface cable

1 x Video cable

1 x Power cable

1 x Dust cover

1 x Aluminum carrying case with key

1 x Object plate made of glass

1 x Contrast plate black / white

1 x Backup lamps for reflecting light

1 x Backup lamps for transmitting light

1 x Backup fuse

1 x Cleaning tissues

1 x Instruction manual

Manual


Datasheet
