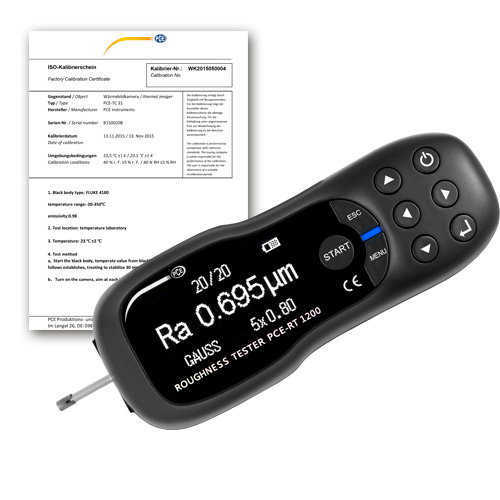

PCE-RT 1200 Roughness Tester

  • Manufacturer: PCE
    Model: RT 1200
    Guarantee: 12 month
  • 1,493.20
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: PCE-ANH

Model : PCE-RT 1200

Warranty : 12 months


Specification

Measurement parameters: Ra, Rz, Rq, Rt

Measuring ranges:

Ra, Rq: 0.005 ... 16.00 µm / 0.197 ... 629.921 µin

Rz, Rt: 0.002 ... 200.0 µm / 0.079 ... 7874.016 µin

Radius probe tip: 5 µm/ 196.850 µin

Material probe tip: Diamond, 90° angled

Max. recommended force for static measurement :    4 mN (0.4 gf)

Radius longitudinal guide bar: 45 mm / 1.77"

Maximum driving distance: 15 mm / 0.59"

Measuring principle: Inductive

Cut-off wavelength: 0.25 mm / 0.8 mm / 2.5 mm

0.009" / 0.03" / 0.098"

Testing speed:

0.135 mm/s at cut-off wavelength: 0.25 mm

0.5 mm/s at cut-off wavelength: 0.8 mm

1 mm/s at cut-off wavelength: 2.5 mm

Reversing speed: 1 mm/s

Measuring accuracy: < ± 10%

Repeatability: < 6%

Display: OLED

Units: μm / μinch (switchable)

Interface: Micro-USB

Power supply: Rechargeable Li-ion battery

Dimensions L x W x H: 150 x 60 x 43 mm / 5.9 x 2.36 x 1.69 in

Weight: 370 g / < 1 lb


Delivery contents

1 x Material Surface Roughness Tester PCE-RT 1200

1 x Micro-probe

1 x Protective cap for the probe

1 x Chuck

1 x Downloadable Software

1 x Calibration plate

1 x Roughness standard

1 x USB cable

1 x Charging adapter

1 x Carrying case

1 x User manual

1 x ISO calibration certificate

Manual
