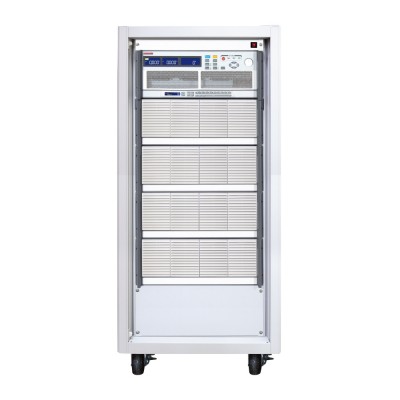

Prodigit 33514F High Power DC Electronic Load (9000W,600A,60V)
Manufacturer: PRODIGIT Model: 33514F - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Power: 9000W
Current: 0~600A
Voltage: 0~60V
Min.Operation Voltage: 0.6V@600A
-CC mode
Range: 0~60A/600A
Resolution: 1mA/10mA
Accuracy: ±0.1%
-CR mode
Range: 0.0017~0.1~6KΩ
Resolution: 0.0016mΩ/0.016mS
Accuracy: ±0.2%
-CV mode
Range: 6V/60V
Resolution: 0.1mV/1mV
Accuracy: ±0.05%
-CP mode
Range: 900W/9000W
Resolution: 15mW/150mW
Accuracy: ±0.5%
- Optional interface : GPIB, RS232, USB, LAN
Current: 0~600A
Voltage: 0~60V
Min.Operation Voltage: 0.6V@600A
-CC mode
Range: 0~60A/600A
Resolution: 1mA/10mA
Accuracy: ±0.1%
-CR mode
Range: 0.0017~0.1~6KΩ
Resolution: 0.0016mΩ/0.016mS
Accuracy: ±0.2%
-CV mode
Range: 6V/60V
Resolution: 0.1mV/1mV
Accuracy: ±0.05%
-CP mode
Range: 900W/9000W
Resolution: 15mW/150mW
Accuracy: ±0.5%
- Optional interface : GPIB, RS232, USB, LAN
