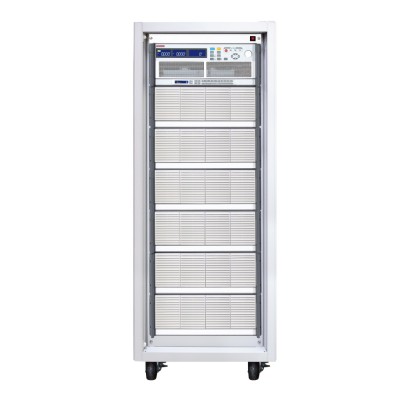

Prodigit 33516F High Power DC Electronic Load (12600W,840A,60V)

  • Manufacturer: PRODIGIT
    Model: 33516F
  • Contact
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Prodigit
Made in Taiwan
Model: 33516F
Warrantly: 12 months

Power: 12600W
Current: 0~840A
Voltage: 0~60V
Min.Operation Voltage: 0.6V@840A
CC mode:
  Range: 0~84A/840A
  Resolution: 1.4mA/14mA
  Accuracy:    ±0.1%
CR mode:
  Range: 0.0012~0.0714~4284Ω
  Resolution: 0.0003mΩ/0.23mS
  Accuracy:    ±0.2%
CV mode:
  Range: 6V/60V
  Resolution: 0.1mV/1mV
  Accuracy:    ±0.05%
CP mode:
  Range: 1260W/12600W
  Resolution: 21mW/210mW
  Accuracy:    ±0.5%
Measurement mode (Load):
  Voltage: 0 ~ 6V/60V, ±0.025%
  Current : 0 ~ 84A/840A, ±0.1%
  Power : 0 ~ 12600W, ±0.125%
Protections:
  Over voltage: 105%
  Over current: 105%
  Over power: 105%
  Over temp.: Yes
Short circuit current: 840A
Dimension (HxWxD): 1556 x 596 x 600 mm
Weight: 232.2 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
