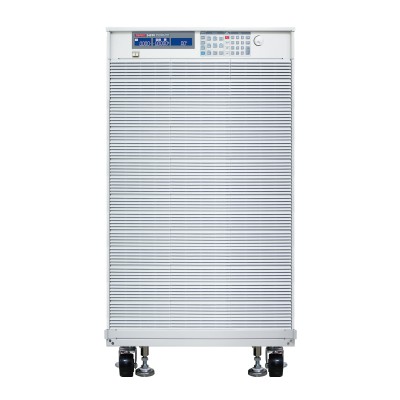

Prodigit 34230A Compact High Power DC Electronic Load(30KW,960A,600V)

  • Manufacturer: PRODIGIT
    Model: 34230A
  • Contact
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Prodigit
Made in Taiwan
Model: 34230A
Warrantly: 12 months

Power: 30KW
Current: 0~96A/0~960A
Voltage: 0~600V
Min.Operation Voltage: 10V@960A
Protections:
  Over Power Protection (OPP): 105%
  Over Current Protection (OCP): 105%
  Over Voltage Protection (OVP): 105%
  Over Temp Protection (OTP): Yes
CC mode:
  Range: 96A/0~960A
  Resolution: 1.6mA/16mA
  Accuracy:    ±0.1%
CR mode:
  Range: 0.625~12500Ω/0.0066~0.625Ω
  Resolution: 0.0266mS/0.011mΩ
  Accuracy:    ±0.2%
CV mode:
  Range: 600V
  Resolution: 10mV
  Accuracy:    ±0.05%
CP mode:
  Range: 3000W/30000W
  Resolution: 50mW/500mW
  Accuracy:    ±0.5%
Measurement mode (Load):
  Voltage: 0 ~ 60V/60~600V, ±0.025%
  Current : 0 ~ 96A/96~960A, ±0.1%
  Power : 3000W/30000W, ±0.125%
Short circuit current: 960A
Dimension (HxWxD): 1197 x 647 x 766 mm
Weight: 340 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
