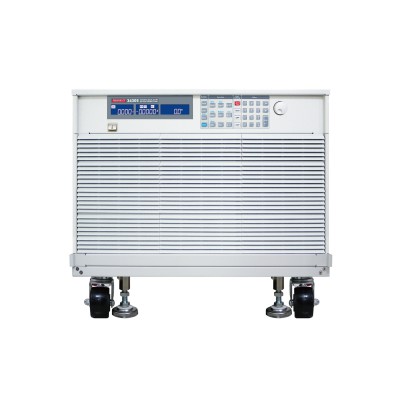

Prodigit 34305A Compact High Power DC Electronic Load (5KW,5A/50A,1000V)

  • Manufacturer: PRODIGIT
    Model: 34305A
  • Contact
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacturer: Prodigit
Made in Taiwan
Model: 34305A
Warrantly: 12 months
Power: 5KW
Current: 0~5A/0~50A
Voltage: 0~1000V
Min.Operation Voltage: 20V@50A
Protections:
  Over Power Protection (OPP): 105%
  Over Current Protection (OCP): 104%
  Over Voltage Protection (OVP): 104%
  Over Temp Protection (OTP): Yes
CC mode:
  Range: 5A/50A
  Resolution: 0.08mA/0.8mA
  Accuracy:    ±0.1%
CR mode:
  Range: 20~24000Ω/0.4008~20Ω
  Resolution: 0.833uS/0.334mΩ
  Accuracy:    ±0.2%
CV mode:
  Range: 20~1000V
  Resolution: 16mV
  Accuracy:    ±0.05%
CP mode:
  Range: 500W/5000W
  Resolution: 8mW/80mW
  Accuracy:    ±0.5%
Measurement mode (Load):
  Voltage: 0 ~ 100V/100~1000V, ±0.025%
  Current : 0 ~ 5A/5~50A, ±0.1%
  Power : 500W/5000W, ±0.125%
Short circuit current: 50A
Dimension (HxWxD): 573 x 647 x 766 mm
Weight: 100 kg
Input: 115/230Vac, 50/60Hz
Optional interface: GPIB, RS232, USB, LAN
