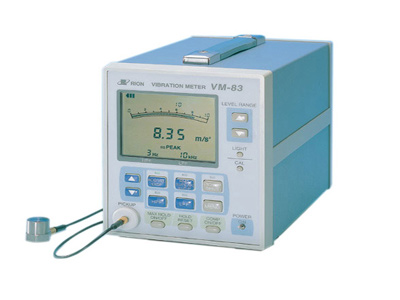

Rion VM-83 General-purpose Vibration Meter

  • Manufacturer: RION
    Model: VM-83
  • Contact
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacture: Rion
Model: VM-83
Made in Japan
Warranty: 12 month

Acceleration: 1 Hz to 20 kHz ± 5 %
Velocity: 1 Hz to 3 Hz ± 10 %, 3 Hz to 3 kHz ± 5 %
Displacement: 1 Hz to 3 Hz ± 20 %, 3 Hz to 500 Hz ± 10 %
Comparator level setting: In steps of 2 % of full-scale range
Delay time setting: 0 to 9 s in 1 -s steps
Auto reset time: 0 to 90 s in 1 -s steps, ON, OFF
Comparator output: Open-collector output (maximum applied voltage 24 V, maximum drive current 25 mA)  Buzzer output (on/off selectable), LCD flashing
Current consumption    : Approx. 190 mA (varies depending on measurement conditions)
Continuous operation on batteries: Approx. 20 hours using alkaline batteries
Ambient conditions for use: -10 to 50, 20 to 90 % RH (no condensation)
Dimensions and weight: 171 (H) x 120 (W) x 234 (D) mm, approx. 1.8 kg
Supplied accessories    : Storage case x 1  IEC R14 (size D) batteries x 4 (manganese)
