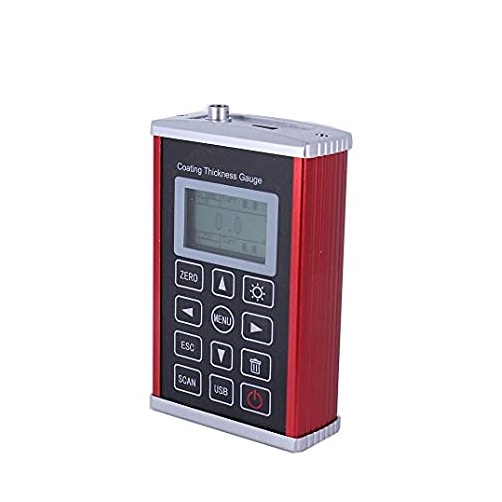

SOLID NDT B4M100 Coating Thickness Gauge (0~1250μm)

Gauge type: Cpad T400

USB Storage: Yes

New Housing: Yes

F Probe: Yes

N Probe: Yes

Measuring Range: F400:0~400μm, N400:0~400μm, F1:0~1250μm, F1/90:0~1250μm, N1:0~1250μm, F10:0~10000μm, CN02:10~200μm

Accuracy: 1%+1

Calibration method: One point/two point

Resolution: 0.1μm(0-99.9μm), 1μm(over100μm)

Temperature: 0°C~50°C

Humidity: 20%~90%

Operation mode: Direct testing & Group testing

Measuring mode: Continuous measurement/Single measurement

Data Storage: 500 data

USB connection: USB connection support U disk and read out by PC

Acessories: The instrument host, Standard Pieces (x4), Tool Box, Aluminum Block, Operating manual, Ferro Block, N1 probe, F1 probe, Quality Card/Test Report
