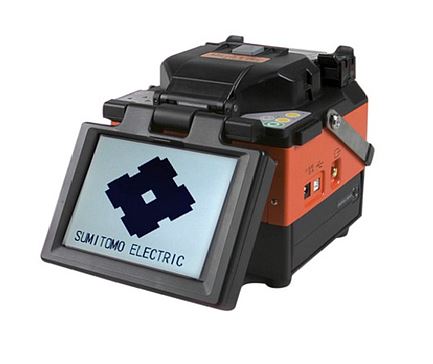

Sumitomo Type 39 Fusion Splicer ( Splice Time 9s , Heating Time 30 s)

  • Manufacturer: SUMITOMO
    Model: Type39
  • Contact
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment
Manufacturer :  Sumitomo
Model : Type 39
Waranty :  12 month

Applicable fibers :  Single / SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655)
Cleave length :  8mm to 16mm with sheath clamp
Splice loss : 0.02dB (SM), 0.01dB (MM), 0.04dB (DSF) and 0.04dB (NZDS)
Splice result storage :  Last 10,000 splices
Electrode life : 3000 splices
Size / weight :  150W x 150D x 150H (mm) / 2.8kg (including battery)
Temperature  :  -10 to 50deg C, Humidity : 0 to 95%RH, non-dew
Other features  :  PC software upgrade / data management
Terminals : USB 1.1  for PC communication. AC power supply.Vali case , Battery Module,CD Manual

  Datasheet

Options:

PCV – 66 : Car Battery Cable

BC – 66 : Battery Charger

VGT – 1 : Cleaning brush

ER – 10 : Electorode

CCS – 25 : Soft vali case

Fiber Holder : FHS-25

SFC : Fiber Cleave

JR – M03 : Jacket Remover

HR -3 : Alcohol Dispenser
