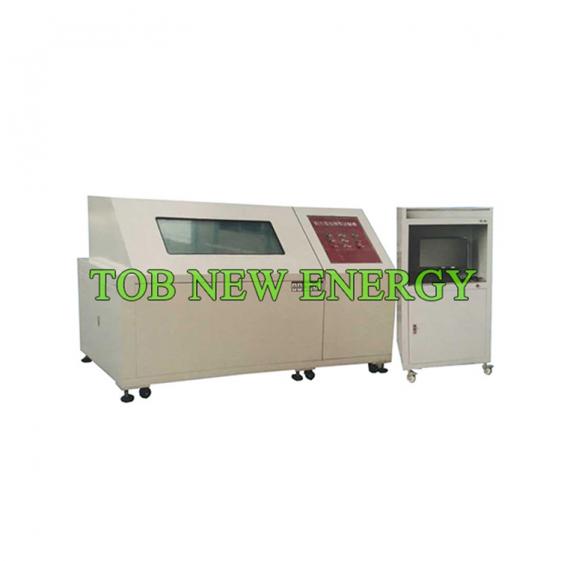

TOB TOB-BE-AP-6045 Horizontal Computer Control Power Battery Crush Testing Machine (5000W)

Source voltage: 3∮5W  380V 50HZ 5000W

Dimension(W*D*H): 2500W*1000D*1000H MM

Weight: 1500kg

Max pressure: 10t,20t, 50t,80t

Battery size: 500W*500D*500H MM,Customized 1000*1000*1000 or bigger

Force error: ±1%

Drive mode: Electro-hydraulic servo drive

Extrusion speed: 0.1~500MM/S(Adjustable)

Unit Conversion: kgf,lbf,N,KN,Kpa,Mpa

Stroke Resolution: 0.005mm

Data collection frequency: 200times/S

Signal transmission mode: RS 232 or USB

Test hole: On the left,50mm diameter hole attached a stainless steel lid

Visual window: Double-proof glass800*300MM and affixed with explosion-proof film, and with steel mesh
