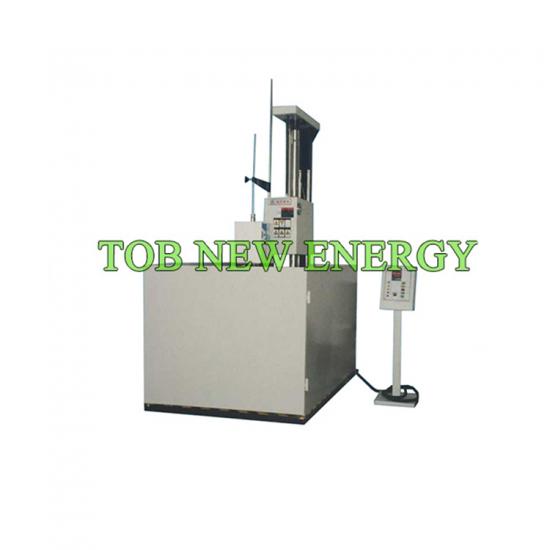

TOB TOB-BF-F-320S Big Battery Dropping Test Machine (300~2000mm)

Drop height: 300~2000mm Adjustable

Dimension: W1200*D1700*H2900mm

Weight: About 850kg

Max battery weight: 0~70KG

Max battery size: W800*D600*H800mm

Carriage arm size: W290*D180*H8mm

Display: Digital Display , Adjustable

Test mode: Side、edge、corner drop-full range

Drop plate material: Steel plate(Hard wood/Marble slab/Acrylic sheet/Cement board optional)

Dropping way: Electric drop

Up and down way: Electric lift

Power supply: AC220V 50HZ

Power: 0.5KW
