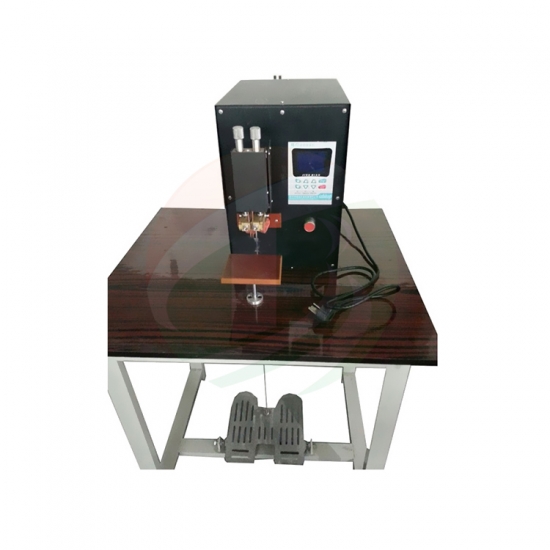

TOB TOB-HT-015 Battery Tab Welding Machine (0.05-0.15mm,110-240v)

Source voltage: 110V-240V with transformer, Single Phase 50/60Hz

Power: 15KVA

Welding ability: 0.05-0.15mm Ni tab

Scope of application

18650, 26650, 32650 cylindrical battery, NI-MH battery

(nickel-metal hydride battery), Nickel cadmium battery and  EV Lithium battery pack Ni tab welding

Welding setting

Pre welding current : 00-99A,

Welding time : 00-30S

Welding current : 00-99A

Welding stroke: 25mm, the welding height can be adjusted

Operating: Foot switch and pneumatic model can be chosen

Control

The microcomputer chip control,

LCD liquid crystal display, simple and precision

Weight: 50kg

Dimension (L*W*H)

Foot switch model with desk : 800*580*1100mm

Pneumatic model : 400*370*220mm


Detail

Datasheet


Advantages

 1 Double pulse welding - pre welding and welding

 2 Microcomputer control precision, Guarantee the evenness of each welding effect

 3 Automatic count
