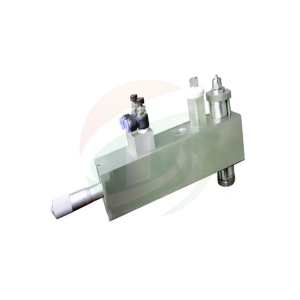

TOB TOB-JK-JLB-M12 Injection Pump For Battery Electrolyte Filling (0-7ml)

Voltage: 110V/220V, 50/60HZ

Power: 20W

Warranty: One year limited warranty with lifetime support

Air Pressure: > 60psi (0.4Mpa)  ( Air compressor in not included)

Advantages

1 High precision of quantitative pump injection

2 Resistance to acid and alkali corrosion

Filling Volume Range: 0 - 7ml

Increment Displayed: 1µl for minimum

Digital Scale Accuracy: 0.02g

Piston diameter : 3/4 inch, about 19.05mm

Stroke: 1 inch, about 25.4mm

Net Weight: 25Kg

Product Dimensions

Injection Pump : 55 * 55 * 250mm

Control Box : 150 *200 * 250mm
