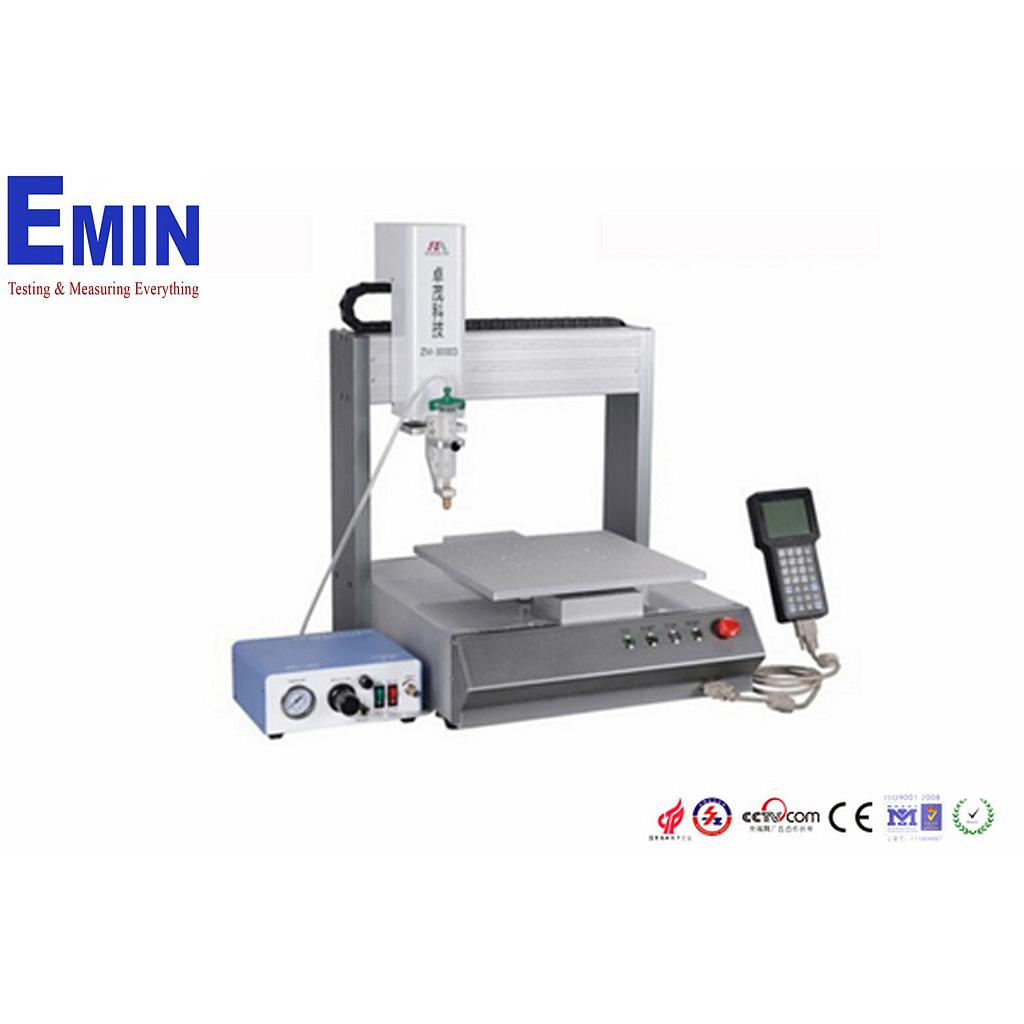

ZHUOMAO ZM-300ED glue dispensing robot with needle operation with handheld LCD panel teach box

  • Manufacturer: ZHUOMAO
    Model: ZM-300ED
  • Contact
  • Call for best price

    Hanoi: (024) 35.381.269

    Đà Nẵng: (0236) 3 74 77 11

    TP.HCM: (028) 38.119.636

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacture: ZHUOMAO
Model: ZM-300ED
Made in: China
Warranty : 12 months


Work area: 300(X)╳300(Y)╳100(Z)mm
Size: 490(L)*528(W)*679(H)mm
Max load: 7kg/3kg
Travel speed: 400mm/sec(XY)/200mm/sec(Z)
Drive mode: Stepping motor + belt +precise linear guide rail
XYZ(Repeatability ): ±0.03mm
Program capacity: 999 parameter files(65535 points per file
Operation  system : LCD panel /Teach pendant
Motor: Japan micro stepping motor
Movement pattern: 3 axis point to point, continuous line, arc
IO(I/O signal ports): 4 inputs/4 outputs
Power supply: AC220V 50/60Hz 0.5kw
Work condition: Temperature 0-40℃;humidity 20-90%
Weight: 35kg(About35kg)

Features:

1.Operation with handheld LCD panel teach box, which is easy to program and learn.

2.Functions of drawing points, lines, surfaces, arc, circle and consecutive interpolation of irregular curves, is to realize any 3D non planar trajectory path.

3.Excellent teaching function, Supporting: array, graphical browsing three dimensional elliptic, common graphical library inserting, group editing and so on..

4.MINISD file storage with high speed and2Gcapacity can store 999 dispensing process documents.

5.The size of glue, speed of glue spread, dispensing time, and time of halting dispensing can be set by parameters.

6. With special dispensing controller, glue outflow is quite stable without leaking and dripping.

7.The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.

8.Powerful PC compatibility with the Logoshop software, It can import mainstream design software, such as cave, Auto CAD, Coral Draw etc.,  to generate a variety of file formats. Such as NC, .AI, DXF, .JPG, .BMP, scanner etc..

9.It is applied to fluid dispensing, such as, UV glue, AB glue, COB(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative and so on.
