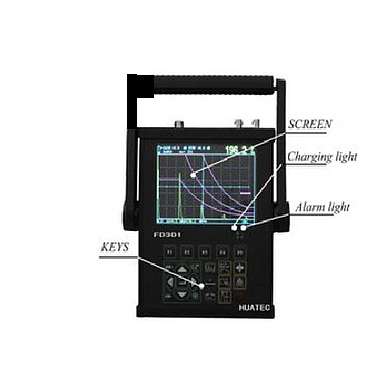

Máy siêu âm khuyết tật Huatec FD301 (10000mm)

Tự động căn chỉnh,
Tự động quay video quá trình đo
Các chức năng: DAC AVG & B scan, AWS function, 6dB DAC
Chụp ảnh tốc độ cao, nhiễu thấp
Phần mềm kết nối phân tích dữ liệu trên PC
Tự động chuyển đổi đo 3 chỉ tiêu (sâu d, mức p, khoảng cách s)
Tự động xác định vị trí lỗ hỏng (sâu d, mức p, khoảng cách s, biên độ, dB...)
Dải đo: 2.5~10000mm
Độ biến động tuyến tính dọc: ≤3%
Độ biến động tuyến tính ngang: ≤0.1%
Độ nhạy: ≥62dB
Dải biến động: ≥34dB
Tần số: 0.5 ~  20 Mhz
Vận tốc: 1000 ~  13000 m/s
Chế độ đo: đơn, đôi, xuyên
Loại cổng: BNC
Nhiệt độ hoạt động: (℃)-20~50
Kích thước:  210×156×40
Khối lượng: 1kg
Phụ kiện: máy chính, đầu đo thẳng và đầu dò 60 độ, cáp nối, hdsd, hộp đựng.

Khách hàng cần chọn mua thêm đầu dò 45 độ HFD8X9-5M-45, đầu dò 70 độ HFD8X9-5M-70, và khối chuẩn V1 để đủ bộ siêu âm mỗi hàn

Chi tiết
Product Info.:

·Automated calibration Automated gain
·Automated make video of test process and play
·DAC AVG & B scan, AWS function, 6dB DAC

·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright
·Powerful pc software and reports can be export to excel through RS232/ USB interface

Features :


·         Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, ф)
·         Automated switch three staff gauge ((Depth d, level  p, distance s)
·         Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity
·         Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated
·         100 independence setup, any criterion can be input freely, we can work in the scene without test block

·         Big memory of 300 A graph and 30000 thickness value
·         Automated gain and gain scan
·         Automated make video of test process and play
·         Peak Hold and Peak Memory
·         B scan

·         Powerful pc software and reports can be export to excel
·         The embeded software can be online updated
·         Li battery, continue working time up to 10 hours



Other Assistant Function :


·         Display freeze;
·         Automated echo degree;
·         Angles and K-value;
·         Lock and unlock function of system parameters;
·         Dormancy and screen savers;
·         Electronic clock calendar ;
·         Two gates setting and alarm indication;
·         Gate and DAC alarm;
