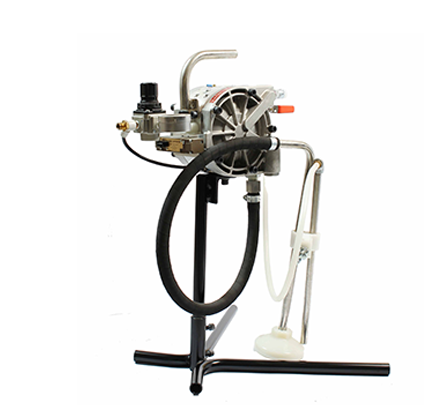

ASAHI SUNAC PD-40 空気圧ダイアフラムポンプ

- Pressure ratio: 1:1

- Max. paint pressure: 0.7 Mpa

- Max. air pressure: 0.7 Mpa

- Max. rate of discharge: 20L/min

- Air hatch: G1/4 (PF1/4)

- Fluid outlet: Rc 3/8 (PT3/8)

- Dimensions  (WxDxH): 470x540x690mm

- Mass: 8.5kg

- Required compressor: 15 kw (2PS)
