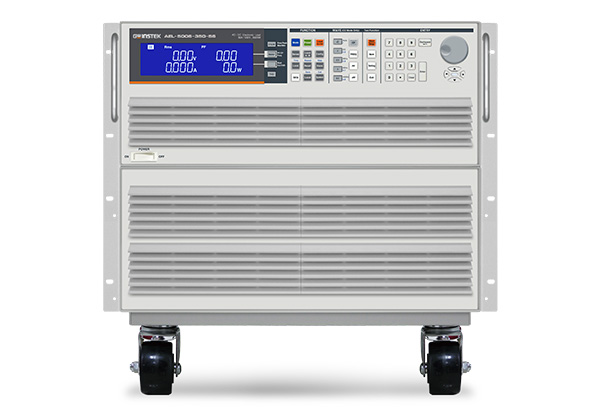

GW INSTEK AEL-5012-350-112.5 AC負荷 (11250W, 500V, 1125A)

Power (W): 11250W

Current(Ampere): 112.5 Arms / 337.5Apeak

Voltage: 50~350Vrms / 500Vdc

FREQUENCY Range : DC,40~440Hz(CC,CP Mode) , DC~440Hz(LIN,CR,CV Mode)

 Constant Current Mode for Sine-Wave

Range:0~1125A

Resolution: 1.875mA/16bit

Linear Constant Current Mode

Range: 0~1125A

Resolution: 1.875mA/16bit

Constant Resistance Mode

Range:0.533 ohm~10.666K ohm

Resolution:   0.031248mS/16bit

Constant Voltage Mode

Range: 50~350Vrms / 500Vdc

Resolution: 0.01V

Constant Power Mode

Range: 11250W

Resolution: 1W

Dimension( H x W x D ):  636 x 480 x 590 mm

Weight: 105kg

Optional Accessories

PEL-022 GPIB Card

PEL-023 RS-232 Card

PEL-024 LAN Card

PEL-025 USB Card

PEL-025 USB Card

Detail

Datasheet
