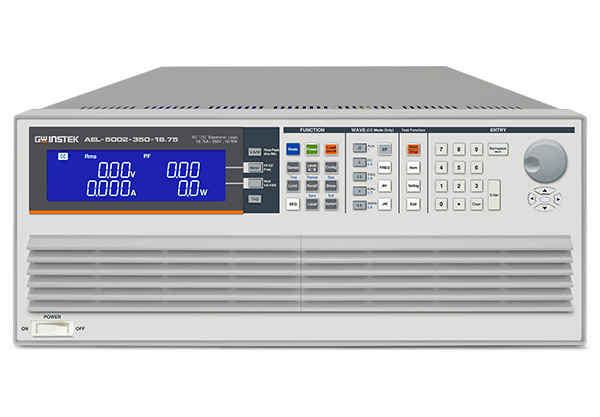

GW INSTEK AEL-5012-425-112.5 AC負荷 (11250W, 112.5A, 425V)

Power (W): 11250W

Current(Ampere): 112.5 Arms / 337.5Apeak

Voltage: 50~425Vrms / 600Vdc

FREQUENCY Range : DC,40~440Hz(CC,CP Mode) , DC~440Hz(LIN,CR,CV Mode)

 Constant Current Mode for Sine-Wave

Range: 0~112.5A

Resolution: 1.875mA/16bits

Linear Constant Current Mode

Range: 0~112.5A

Resolution: 1.875mA/16bits

Constant Resistance Mode

Range: 0.533 ohm～10.666K ohm

Resolution: 0.031248mS/16bits

Constant Voltage Mode

Range: 50~425Vrms / 600Vdc

Resolution: 0.1V

Constant Power Mode

Range:11250W

Resolution: 0.1875W

Dimension( H x W x D ): 636 x 480 x 590 mm

Weight: 105kg

Optional Accessories

PEL-022 GPIB Card

PEL-023 RS-232 Card

PEL-024 LAN Card

PEL-025 USB Card

PEL-025 USB Card
