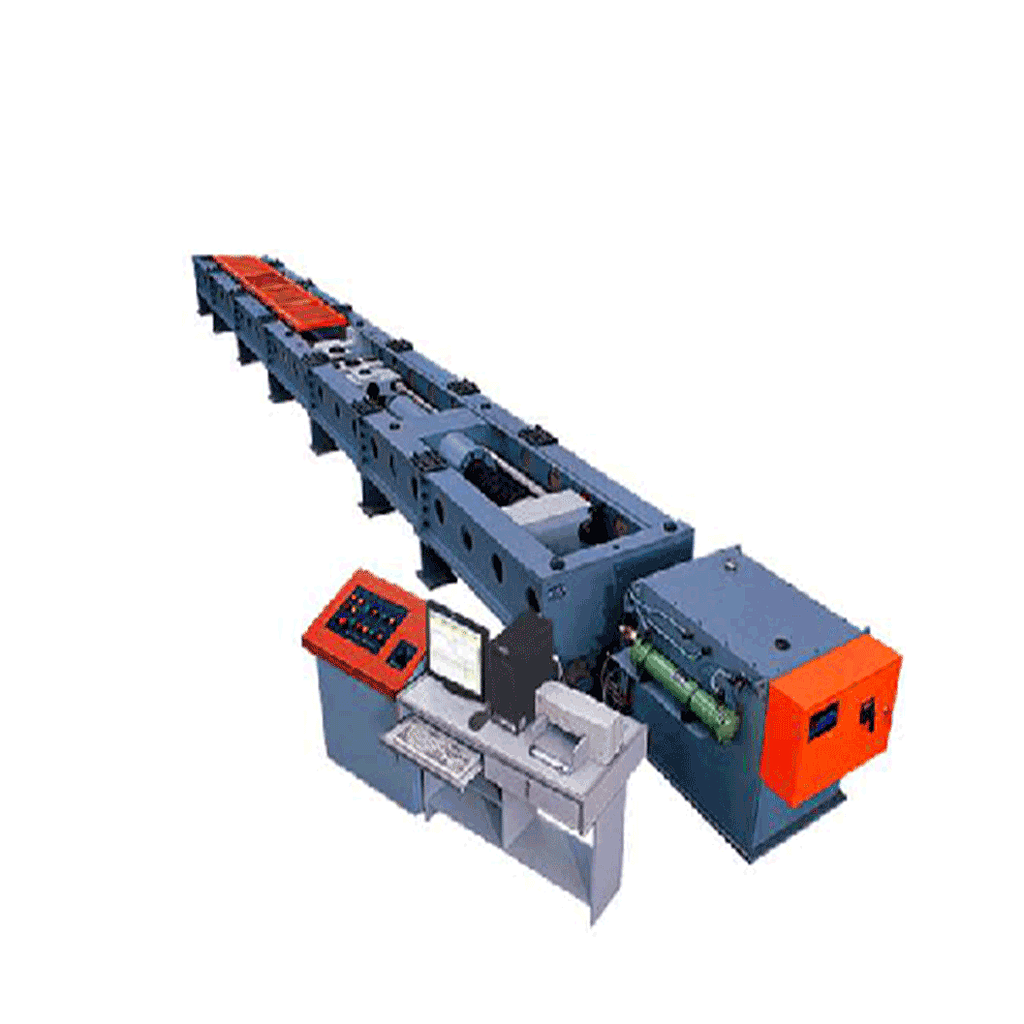

HST WAL-10000 コンピューター制御油圧サーボ水平引張試験機 (10.000kN)

Max.Testing Load (kN): 10.000

Amplifying multiple: 1,2,5 (Three steps)

Accuracy of specimen elongation: 1%FS

Resolution Of crosshead displacement (mm): 0.02

Tensile testing space (mm): 1000 / 3000 / 5000


Details

Datasheet


Application:

WAL Series Computer Control Hydraulic Servo Horizontal Tensile Testing Machine is suitable for tensile test of long materials like wire rope, cable, nylon rope and chain etc. It applies the full digital controller, servo control system along with the standard analytic software, so it can realize close loop control for load and displacement, digitally setting zero, software/hardware digitally calibrating, protection, limit-position signal input, thus the machine posses user’ programming function. In addition the machine can be equipped with special analytic software and print the report templet according to the requirements from the customers. It’s widely used in some plants who produce longer materials.

Applied Standard:

Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.

Strain measurement meets the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4
