HST WAW-1000A 油圧ユニバーサル試験機 (1000kN)

Max. Load(kN): 1000

Load accuracy: Class 1

Load range: 2%~100%F·S

Load resolution: Capacity/300, 000 (fully auto scaling of single measurement

Deformation Measurement Range: 2%~100%FS

Stroke: 250mm

Test speed(mm/min): 0-80

Max. Tension Test Space (mm): 1400

Compression space: 1200

Nominal maximum specimen sizes Diamater(mm): Φ13-26,Φ26-45,Φ45-60

Details

Datasheet


1.Introduction Application

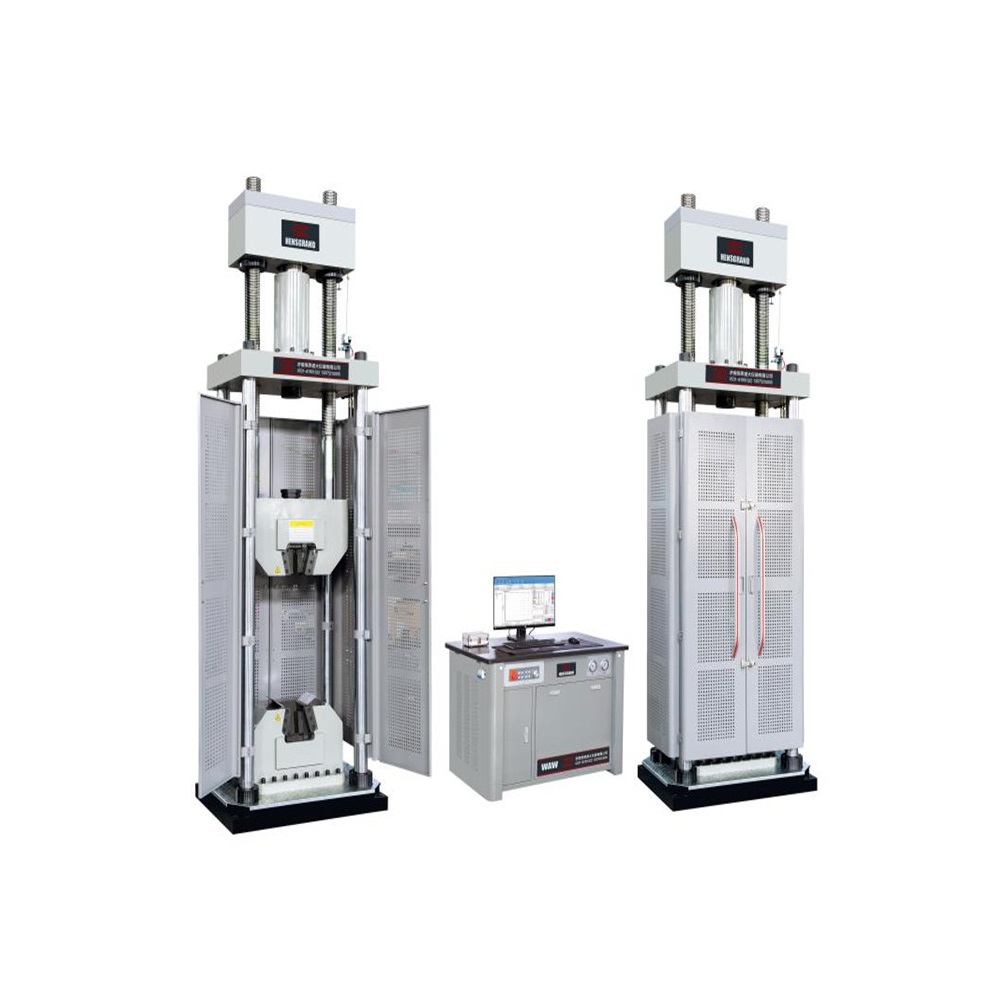

WAW-1000A/1500A/2000A Hydraulic Universal Testing Machine is ideal for high-capacity tension, compression, bend/flex, and shear testing.

It accords with the correspondent requirements of BS, EN, ISO, ASTM,JIS and many other testing methods.

These frames feature dual spaces so users can quickly change between tension and compression testing without having to remove heavy fixtures.

2.Application

Metals-(wire, rod, tube,strip, plate, strip)

Fasteners (tensile, proof,single and double shear)

Construction materials(reinforcement bar, wire,mesh, folding,compression of concrete and components)

Nonmetal materials , and more
