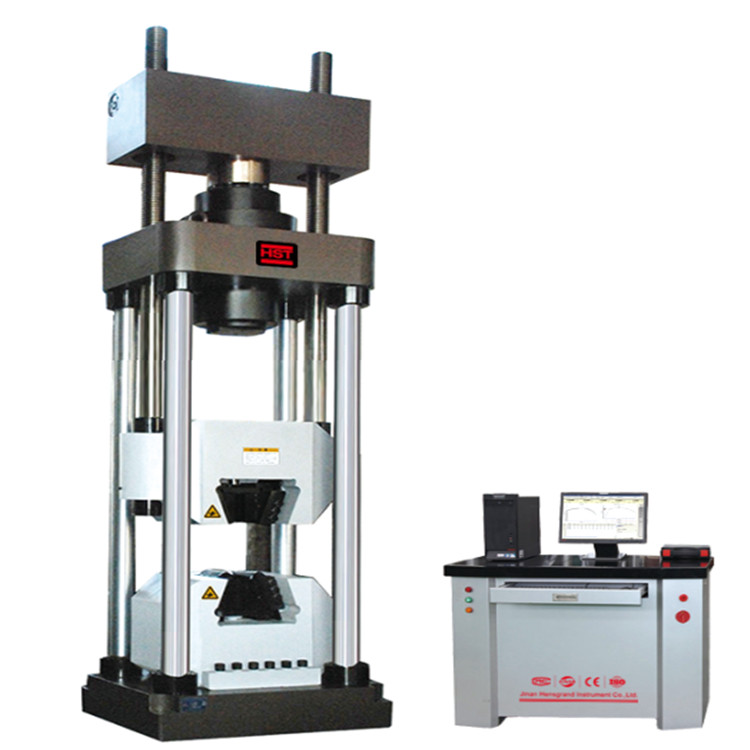

HST WAW-3000A 油圧ユニバーサル試験機 (3000kN)

Max. Load(kN): 3000

Load accuracy: Class 1

Load range: 2%~100%F·S

Load resolution: Capacity/300, 000 (fully auto scaling of single measurement

Deformation Measurement Range: 2%~100%FS

Stroke: 250mm

Test speed(mm/min): 0-80

Max. Tension Test Space (mm): 800

Nominal maximum specimen sizes Diamater(mm): Φ20~Φ50,Φ50~Φ80, Φ80~Φ110

Nominal maximum specimen sizes Thickness(mm): 5~50, 50~100

Column Effective Spacing(mm): 600


Detail

Datasheet


1.Introduction Application

WAW-3000A/4000A/5000A Hydraulic Universal Testing Machine is ideal for high-capacity tension, compression, bend/flex, and shear testing.

It accords with the correspondent requirements of BS, EN, ISO, ASTM,JIS and many other testing methods.

These frames feature dual spaces so users can quickly change between tension and compression testing without having to remove heavy fixtures.

2.Application

Metals-(wire, rod, tube,strip, plate, strip)

Fasteners (tensile, proof,single and double shear)

Construction materials(reinforcement bar, wire,mesh, folding,compression of concrete and components)

Nonmetal materials , and more
