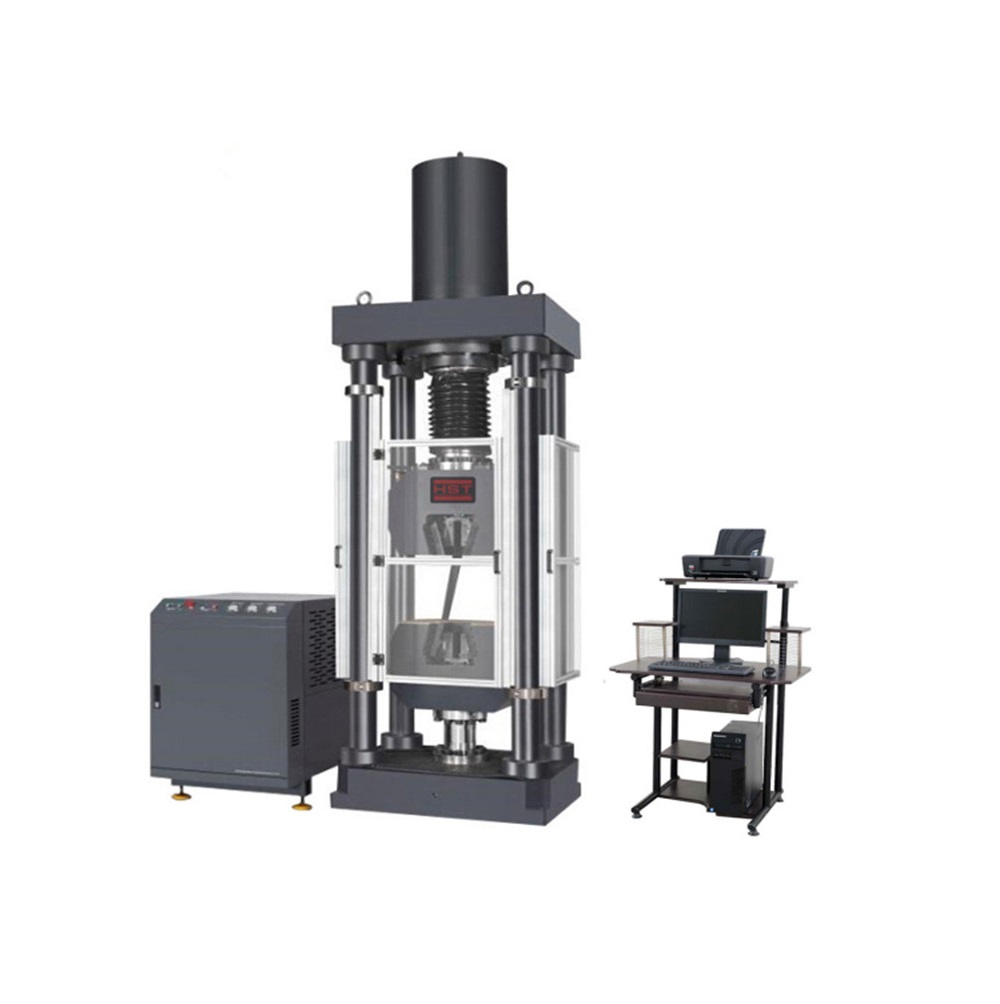

HST WAW-300F 電気油圧式シングルスペースサーボユニバーサル試験機 (300kN)

Max. Load capacity(kN): 300

Structure: Four column

Accuracy of testing load(%): ±0.5

Accuracy of deformation(%): ±0.5

Test Range: 1%-100%

Deformation measurement range: 1%-100%

Piston rising speed(mm/min): 0-250

Piston descending speed(mm/min): 0-250

Test Force Loading Rate Range: 0.02%-2%FS/s

Host structure: 2

Max. Tensile space(mm): 400

Max. Compression space(mm): 300

Actuator stroke(mm): 370

Detail

Datasheet


1. Application

WAW-F Series Universal Testing Machines is designed with single workspace. It can do tension, compression, bending and shearing tests. Force measurement is through load cell. With long travel actuator stroke, it is suitable to test standard specimens, long length specimens, and specimens with large elongation.

2. Standards

2.1 Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.

2.2 Strain measurement meets or exceeds the following standard: ASTM E83, ISO 9513, BS3846, EN10002-4

2.3 Also conform to some other standards: ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.
