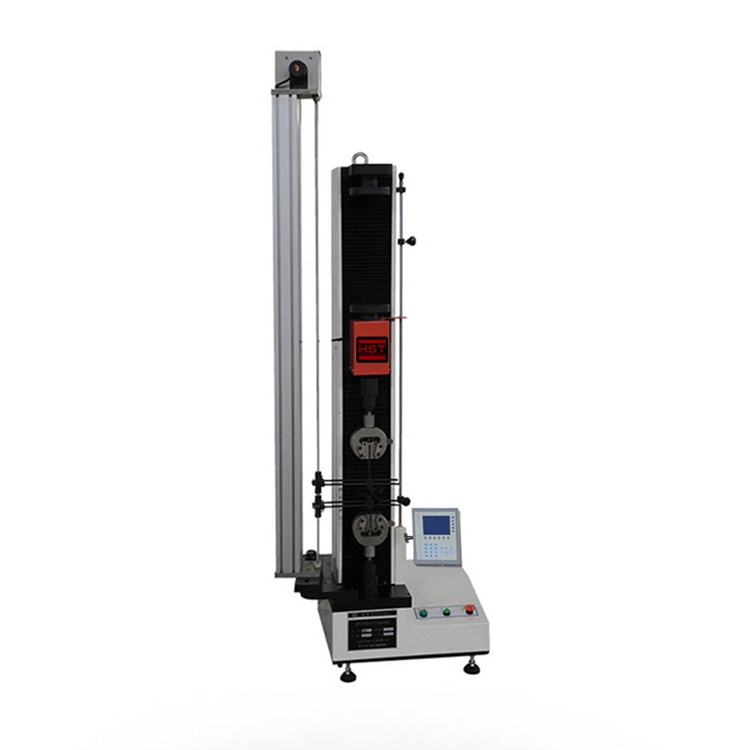

HST WDS-01 大変形のデジタルディスプレイ電子万能試験機 (0.1kN, AC220V)

Structure: Single column double spaces

Max. Load(kN): 0.1

Material: All aluminum alloy surface spray painting shell

Load accuracy: ISO 7500 Class 1

Load range: 2%~100%F·S

Load resolution: 1/ 50000

Resolution of displacement: 0.01mm

Test speed(mm/min): 1-500 stepless arbitrary setting

Speed accuracy: within ±1% set speed

E-Tensile space(mm): 600(can be customized)

E-Compression space(mm): 600(can be customized)

D-Test width(mm): 100

F-Beam travel distance(mm): 772

H-Workbench thickness(mm): 26

G-Base height(mm): 158

Power supply: AC220V±10%,50Hz/60Hz(can be customized)



1. Application

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2. Standards

ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
