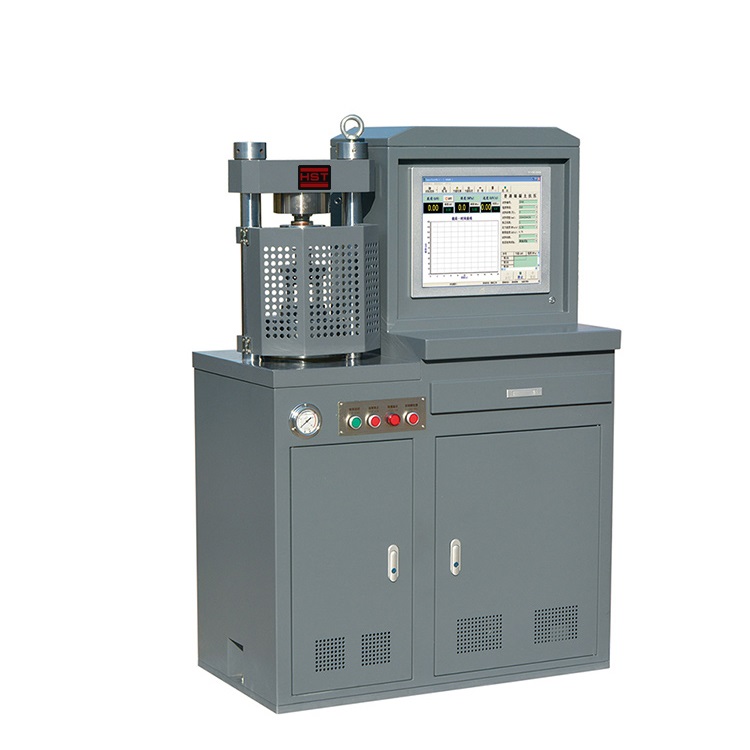

HST YAW-300B コンピュータ制御圧縮試験機 (300KN)

Max compression test force(kN): 300

Type: Compression

Test Accuracy: ±1%

Test measurement range: 2%-100%FS

Control way: Computer control auto loading progress

Test space adjustment method: Block adjustment test space

Oil cylinder piston diameter and stroke: Φ125mm×80

Maximum Piston rising speed: 60mm/min

Free fall velocity of the piston: 35mm/min

Maximum oil pressure: 25Mpa

Max compression space: 390mm

Upper and lower compression plates size: 150mm×200mm
